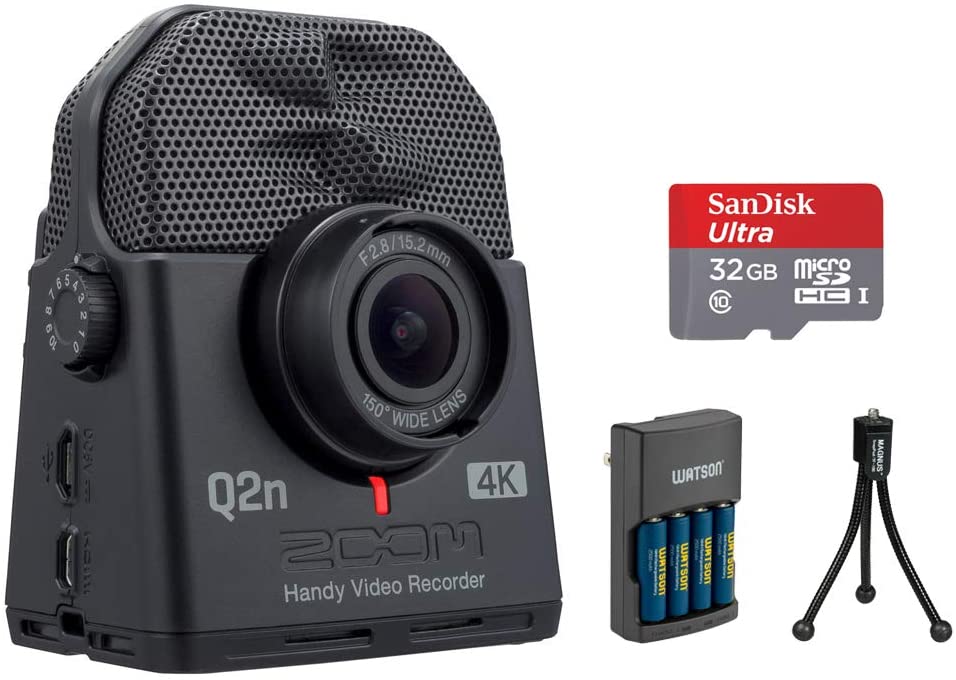

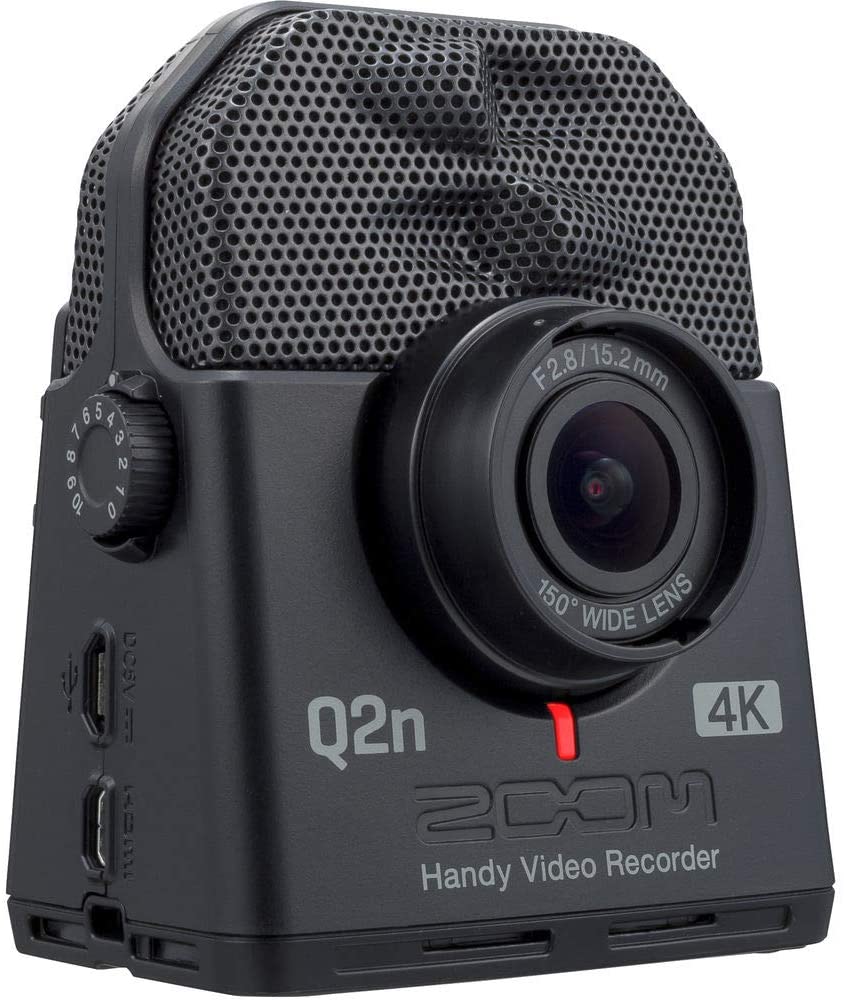

Zoo Q2n-4K Handy Video Recorder
The Zoom Q2n-4K combines unrivaled audio with crisp 4K imaging to completely capture your rehearsals, performances and live streams like never before. Easily capture your full band or solo act using five field of view (FOV) settings. The Q2n-4K’s 150-degree lens and color LCD make it easy to frame the perfect shot. At the touch of a button, the Q2n-4K captures premium video recordings at up to 4K Ultra HD resolution.
Sound
The Q2n-4K’s X/Y stereo microphones are designed to handle everything from saxophone to heavy metal. No distortion, no hiss.
Lights
Stage lights can overexpose your video and can ruin a good take. The Q2n-4K’s high dynamic range (HDR) technology automatically adjusts the exposure, so your lighting effects don’t blow out the shot.
Setting the Scene
12 ‘Scene’ presets allow you to record your performances in a wide range of environments, including “Jazz Club”, “Concert Light”, “Dance Club” and “Outdoor”. The Q2n-4K even features an “Auto” scene setting, which will detect your current lighting and select the appropriate balance for you.
Live Stream with Great Audio
The Q2n-4K is the ultimate musician’s webcam, able to stream performances live to Facebook, YouTube, Twitch and more.
Watch it on a Big Screen
With a micro HDMI video output, the Q2n-4K lets you watch your video in high definition on your TV.
Extended Recording Times
The Q2n-4K can record on microSD, microSDHC and microSDXC cards. And when using the Q2n-4K with a microSDXC card, you can record longer sessions as a single file.
Features
- High-quality 150° wide-angle lens (f2.8/15.2 mm)
- 12 Scene options for different lighting environments, including an ‘Auto’ setting that adapts to your environment
- Built-in X/Y stereo microphones capable of handling sound levels up to 120 dB SPL
- Can be used as standalone audio recorder with data saved in WAV format up to 24-bit/96 kHz

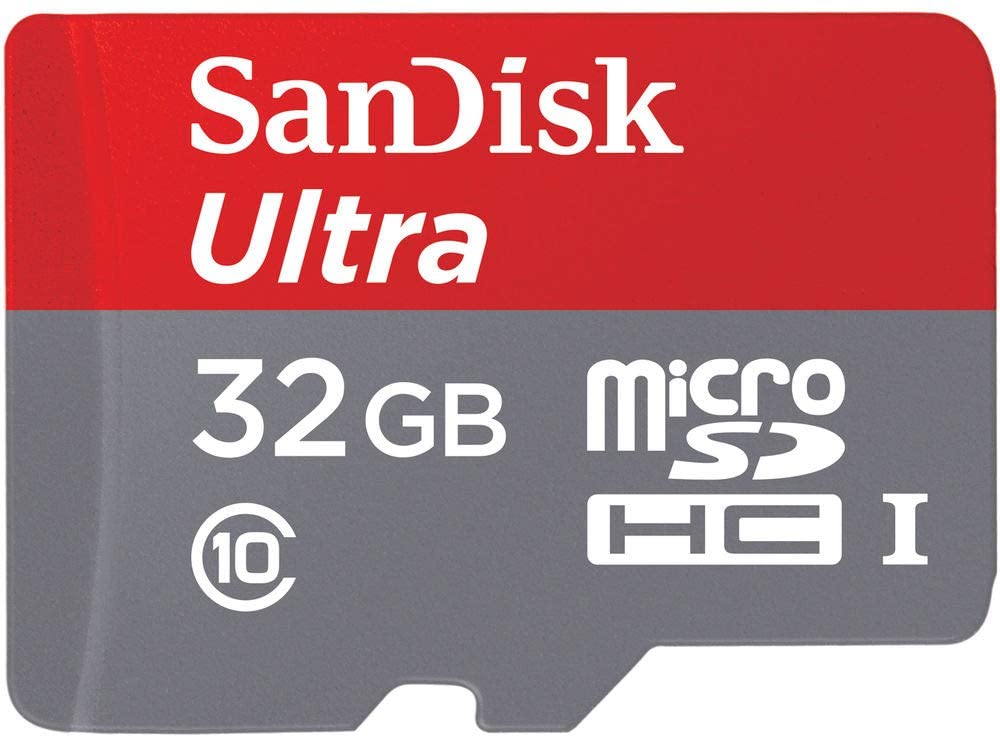

- Records directly to microSD, microSDHC and microSDXC cards up to 256 GB for extended recording times
- Support for three HD video resolutions: 720p, 1080p and 4K
- Five-field of view (FOV) settings
- HDMI video output for connection to HDTVs, selectable between NTSC and PAL
- Records video (with audio) in MOV format
- Analog-style level control with onscreen digital metering
- Auto Gain function gives automatic control over audio input level
- Headphone/line-level output for fast audio monitoring
- USB interface for live streaming and data transfer
- Operates with two AA batteries

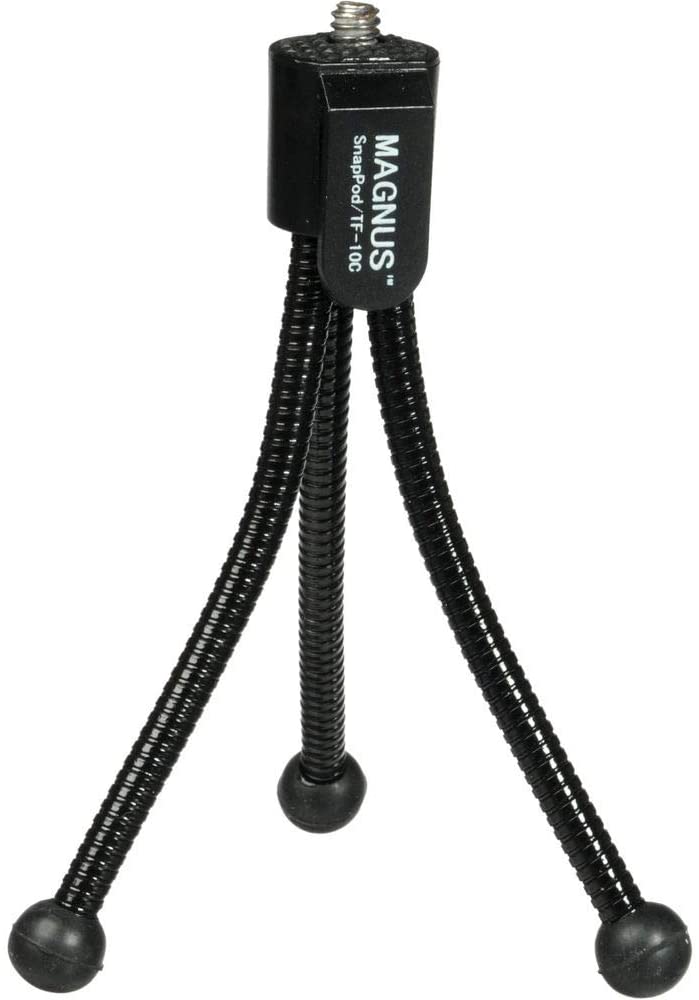

- Built-in standard tripod mount
Specifications
- Image sensor: 1/2.3" 16 M-flexible CMOS sensor
- Lens: F 2.8, 150° FOV
- Video format: MPEG-4 AVC/H.264 (MOV)
- Video resolutions: 4K: 30 p, 25 p, 24 p
- 1080: 60 p, 50 p, 30 p, 25 p, 24 p / 720: 30 p, 25 p
- Audio formats: WAV: 96 kHz/24-bit, 48 kHz/24-bit, 44.1 kHz/16-bit
- Audio functions: · LO-CUT: Off, 80 Hz, 120 Hz, 160 Hz
- · AUTO GAIN: OFF, CONCERT, SOLO, MEETING
- · DELAY: 0.0 F, 0.5 F–10.0 F (only during web camera use)
- · DIRECT MONITOR ON/OFF (only during USB mic use)
- Image functions: · FOV (5 steps): WIDE–0–TELE

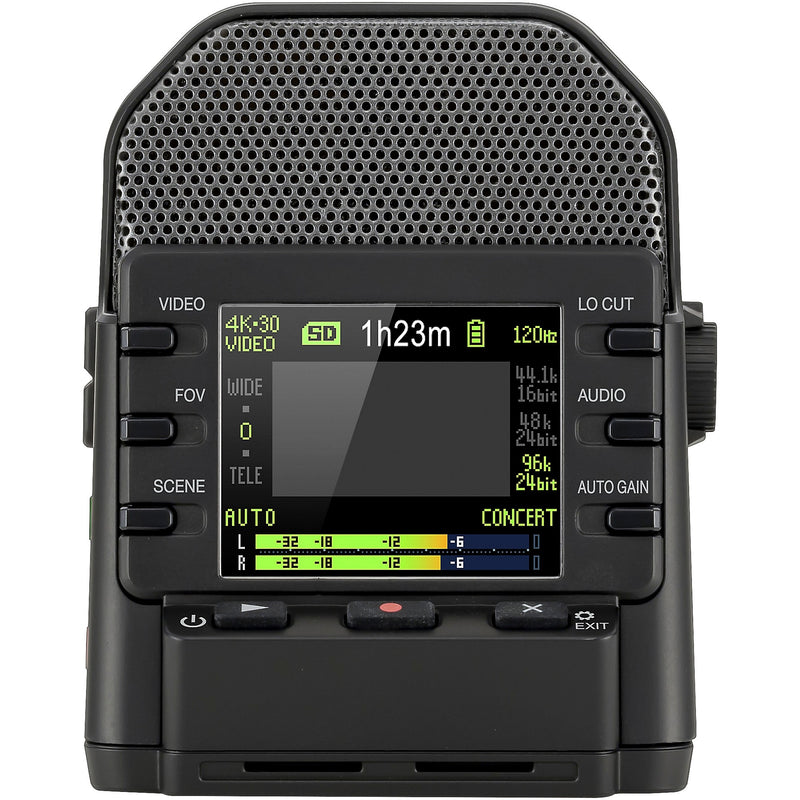

- Display: 1.77" full-color LCD (160 x 128)
- Mic input: Fixed 120° XY stereo mic:
- Maximum sound pressure: 120 dB SPL
- Input gain: −∞ dB – +39 dB
- Line input: Input connector: stereo mini jack (supports plug-in power)
- Input gain: −∞ dB – +39 dB
- 2 kΩ or higher input impedance
- Plug-in power (2.5 V) supported

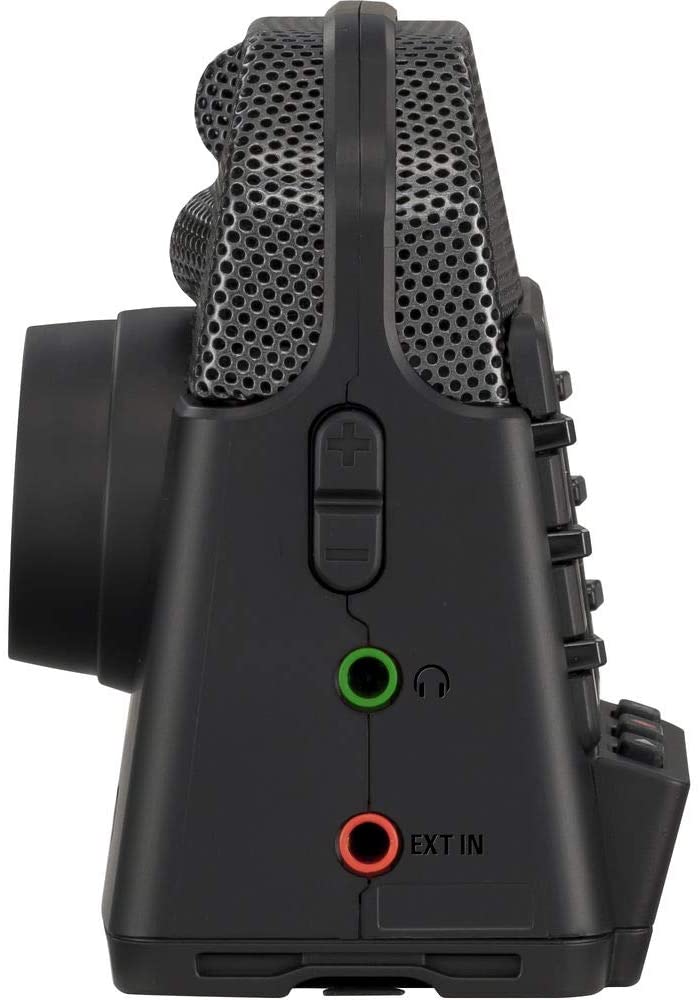

- Output connector: Combined headphone/line stereo mini jack
- HDMI micro Type D
- Built-in speaker: 300 mW 8 Ω mono speaker
- Recording media: microSD/microSDHC/microSDXC (256 GB maximum)
- USB: micro USB
- WEB Camera class: UVC 1.0 + UAC 1.0
- Specifications: WVGA, 720 p video
- 48 kHz/16-bit audio
- Card reader class: USB Mass Storage
- USB Mic class: UAC 1.0
- Specifications: 44.1 kHz/16-bit
- Note: card reader and USB mic functions support iOS devices

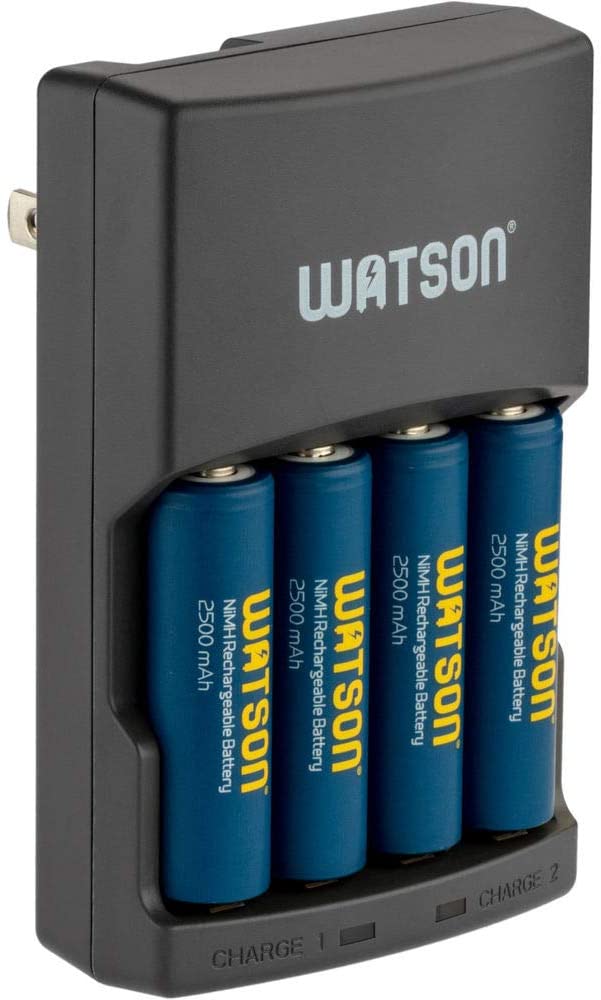

- Power: 2 AA batteries (alkaline, nickel metal hydride or lithium)
- AC adapter (ZOOM AD-17, sold separately): DC 5 V/1 A
- Note: USB bus power supported
- Estimated continuous recording time using batteries:
- Video resolution: Alkaline: Ni-MH: Lithium
- 720/30 p HD: 2.0 hours: 3.0 hours: 6.0 hours
- 1080/30 p FHD: 1.2 hours: 2.0 hours: 4.0 hours
- 4K/30 p UHD: .5 hours: 1.0 hours: 2.0 hours
- Audio quality: 48 kHz/24-bit
- External dimensions: Main unit: 58.7mm (D) x 68.5mm (W) x 83.0mm (H)
- Weight (main unit only): : 124 gr
