Description +-
Yamaha VXS10ST 10" Surface Mount Subwoofer
The Yamaha VXS10T 70V Subwoofer intended for use in sound systems that require a well-defined bass.
Yamaha VXS10ST Key Features
- 10" dual voice coil subwoofer for high impedance systems
- Versatile high-impedance subwoofer
- Sound and size ideally matched to the VXS and VXC series
- Bass-reflex design ensures smooth, distortion-free low-frequency extension
- Dual voice coil configuration supports stereo sources
- Satellite connectors for easy setup

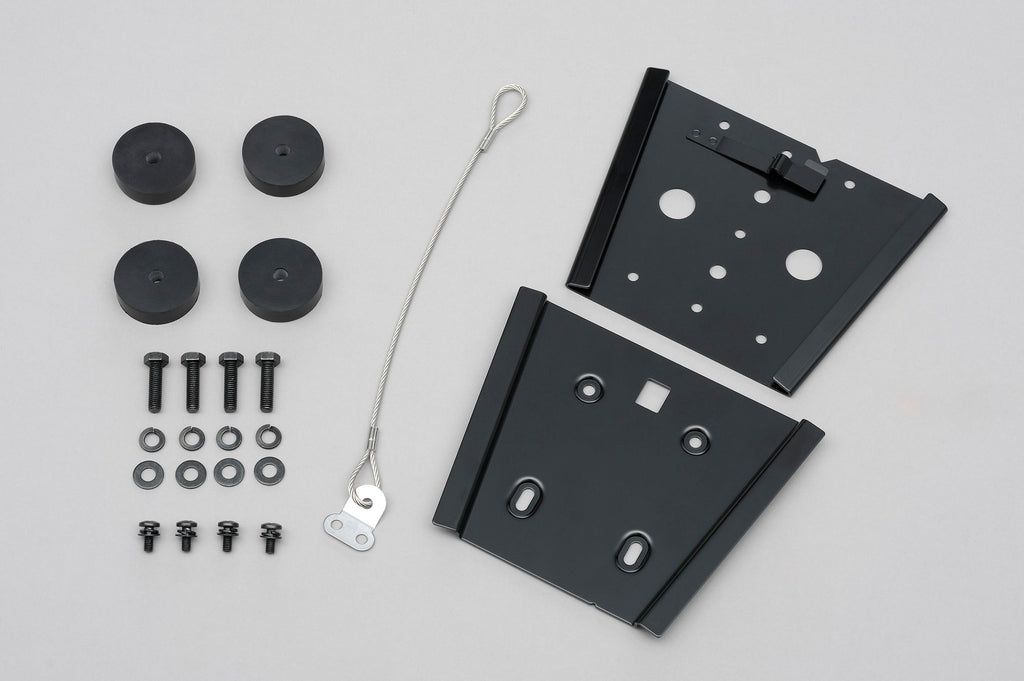

- Dedicated wall-mount hardware supplied

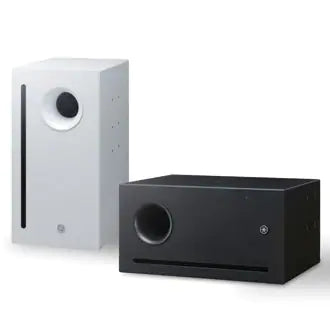

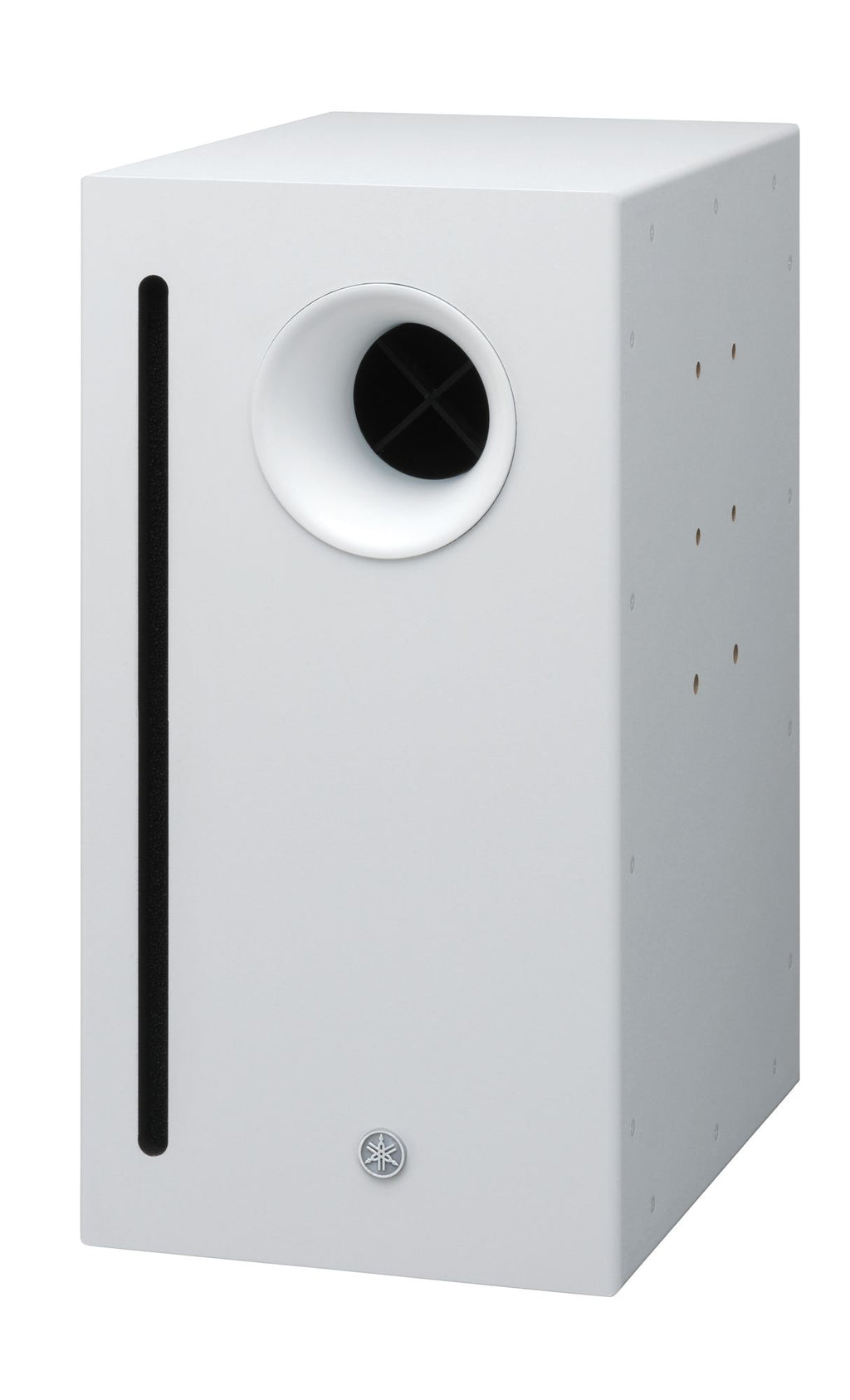

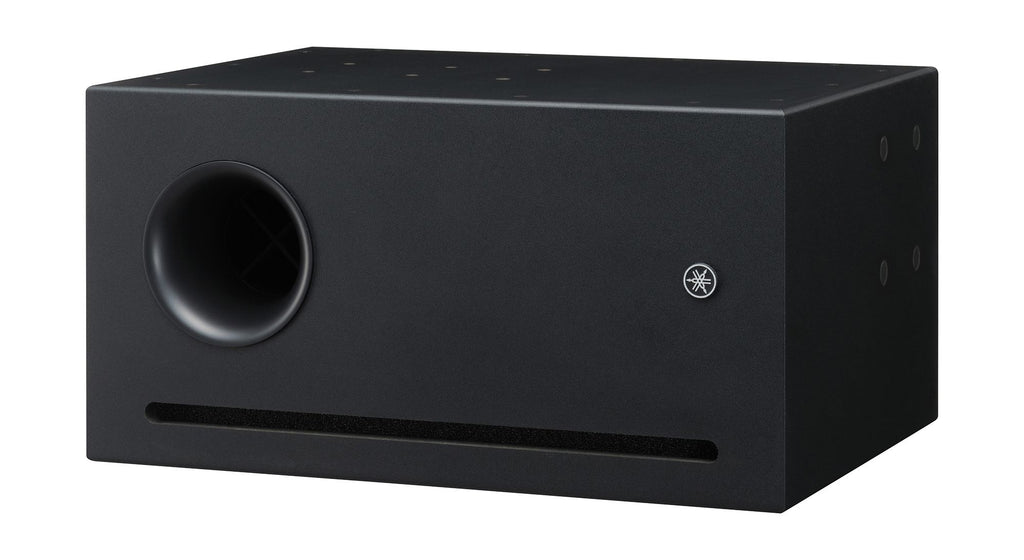

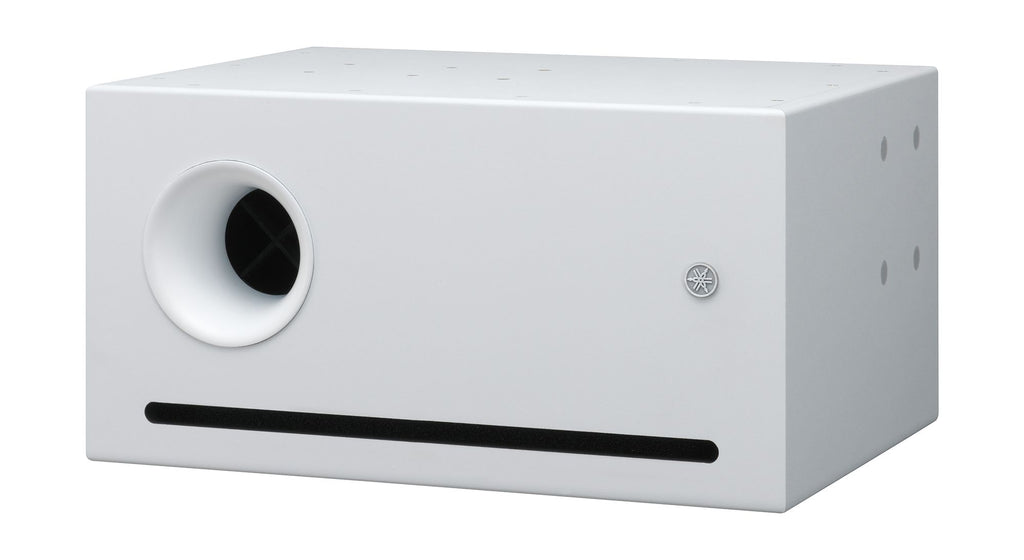

- Black and white models available
- Recommended satellite speakers: VXS3F, VXS5, VXS8, VXC4, VXC6, VXC8, VXC3F
Highly adaptable surface mount speakers
- The VXS Series lineup features 2 models and 4 variations, allowing the user to choose the optimal model for a particular application.
- VXS Series is equipped with internal transformers that allow them to operate at both high or low impedance simply by changing the tap on the rear of the speaker. These models also offer IP35-rated protection, ensuring worry-free use in outdoor applications.
Flexible mounting for easier configuration
- VXS Speakers come with a dedicated bracket for safe, trouble free speaker installation. The bracket base allows the VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets.
- Furthermore, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets.
Pursuing the best sound for installation
To address a demand in the installation market for speakers capable of providing superb music reproduction as well as crystal clear announcements for public address applications.
- Both series feature newly customized transducers with large, powerful magnetic circuits that increase driving and braking force substantially, as well as dedicated tweeter diaphragms and speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction.
- Cabinets are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected plastic with just the right tensile strength, and designed with optimized bass-reflex tuning to offer a firm, tight low-end.
- From the networking components and the materials used for wiring and soldering, right down to the optimal placement of acoustic absorption material, a great deal of attention has been paid to even the smallest details of the series' design.
Speaker Design
- Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction—effectively enhancing sound quality and speaker performance without disturbing the interior décor of the installation. This concept is evident in the hexagonal design featured on the grille that actually improves sound clarity by raising the aperture ratio.
- Similarly, the smooth curves of the surface-mount cabinet's simple yet sophisticated design allow the speakers to be mounted closely to the wall—while still fully capable of panning and tilting to target service areas.
Paintable speakers for your unique room design
VXS series comes with paintable speaker bodies, grilles and brackets. Not only filling the desired room with premium sound, VXS series enhances the design of interior by painting its grille in any color, such as a light color, deep color, or simply the best matching color.
Technical Specifications
|
MANUFACTURER |
Yamaha |
|
Manufacture Part Number |
VXS10ST |
|
Product Type |
SubWoofer, Surface Mount, Wall MOunt |
|
Speaker Type/Configuration |
Bass-reflex type Subwoofer |
|
Colour |
BLACK OR WHITE |
|
Date First Available |
July 10th, 2015 |
|
Frequency Response/Range (-10dB) |
45Hz - 250Hz |
|
Coverage Area |
- |
|
Speaker Driver Size LF-HF |
LF 10" Dual Voice Coil |
|
Power Rating NOISE |
- |
|
PGM |
- |
|
PEAK |
- |
|
Satellite Impedance |
8Ω load per satellite output recommended *2 |
|
Protection Circuit – Load Protection |
8Ω load per satellite output recommended *2 |
|
Transformer 100V |
200W (50Ω), 100W (100Ω), 50W (200Ω) |
|
70V |
200W (25Ω), 100W (50Ω), 50W (100Ω), 25W (200Ω) |
|
SPL - Sensitivity (1W, 1m on axis) |
96dB SPL *3 |
|
Peak (Calculated) |
- |
|
I/O Connectors |

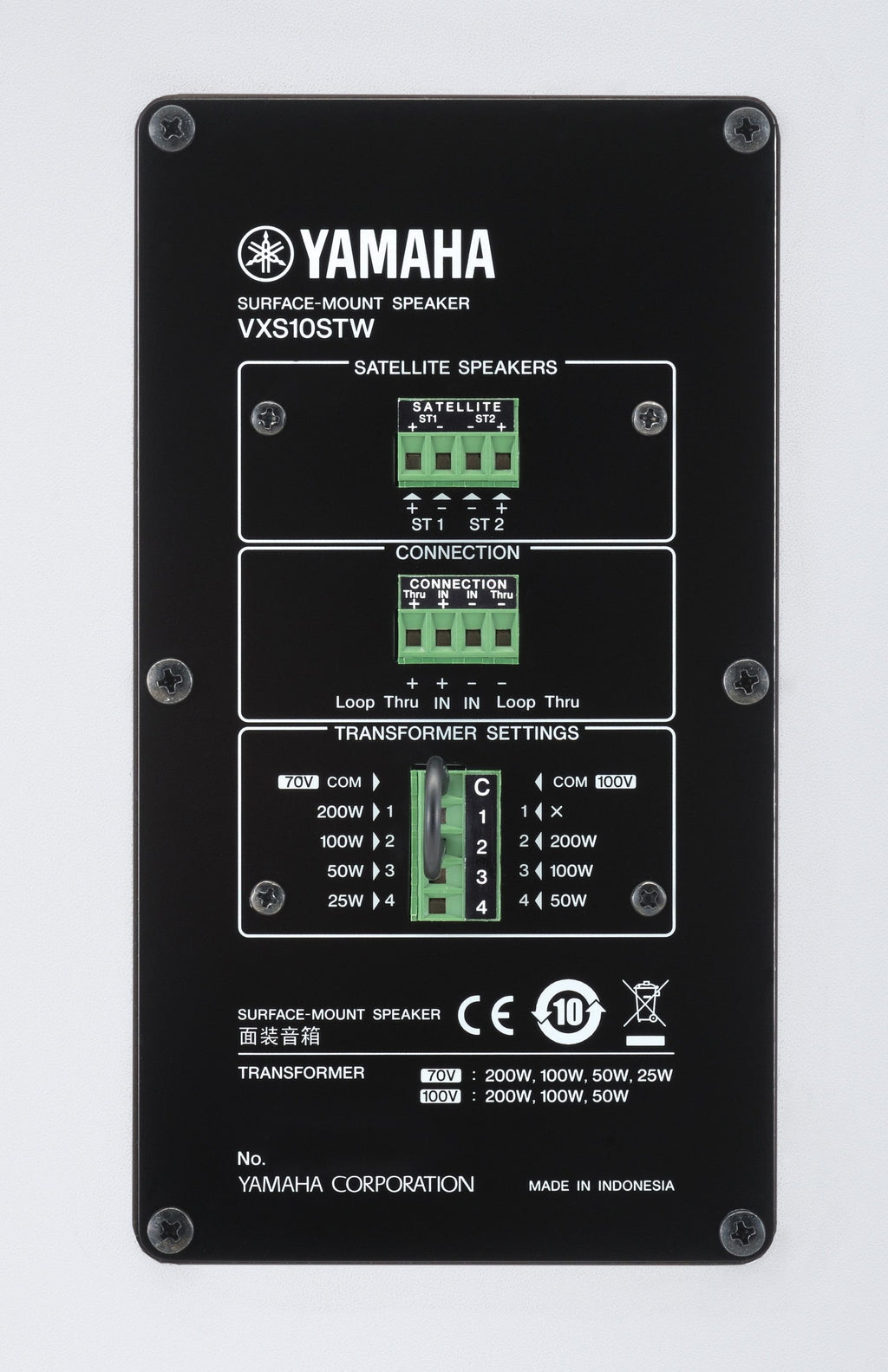

Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -) |
|
Shape |
Rectangular |
|
Cabinet Material |
MDF |
|
Waterproof |
- |
|
Finish |
VXS10S: Black (approximate value: Munsell N3), VXS10SW: White (approximate value: Munsell 3.5PB9.0/1) |
|
Accessories |
Wall mount bracket |
|
Options |
UB-DXR8: U-Bracket |
|
Certificate |
CE, EAC, RoHS |
|
PRODUCT SHIPPING INFO |
|
|
Dimensions - W |
260mm (10.2") *5 |
|
H |
500mm (19.7") *5 |
|
D |
389mm (15.3") *5 |
|
Packaging |
|
|
Net Weight |
19.5kg (43.0lbs) *5 |
|
Package Weight |
|
|
ASIN |
B011D5BBN0 |
|
Manufacture Part Number |
VXS10ST |
|
Compatible Devices |
Yamaha VXS8 Speakers, Yamaha VXS5 Speakers, Yamaha VXs10S Subwoofer |
|
Country of Manufacture |
Indonesia |
