Description +-
Yamaha VXL1B-16 16 Full Range 1.5 Inch Drivers, 40W, Program At 16 Ohm - Black
15-watt Active Speaker with 16 x 1.5" Full-range Drivers, and Dante and PoE Support - White (each)
Slim Line Source Loudspeakers Blend High Sound Quality with Visual Elegance
The VXL1 series cabinets feature 2.1-inch (54mm) wide enclosure with a slim, elegant profile that blends effortlessly into any décor. At the heart of the designs are high-performance, 1.5-inch, full-range drivers configured to deliver natural response down to 77 Hz* for full-range performance that is ideal for speech and music reproduction.

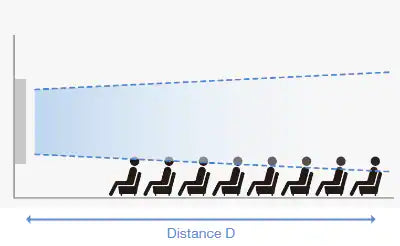

High-performance drivers with neodymium magnets are arranged vertically to create a line source that achieves outstanding projection. By focusing sound in the vertical direction, reflections can be minimized resulting in high-clarity and intelligible sound in the target area.
Yamaha VXL1W-16 Active PA Speaker Features:
- 15W active speaker with 16 x 1.5" full-range drivers
- 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
- 16-driver line-array configuration delivers top-notch sound quality
- 170° horizontal dispersion for uniform SPL over a wide listening area
- Vertical coverage can be selected as 20°(Standard) or 40°(Wide)
- Dante enables you to use your existing Ethernet network to route audio
- PoE powered — no external power amp required
- Slim design complements any interior décor
- Enclosure can be painted to match its surroundings

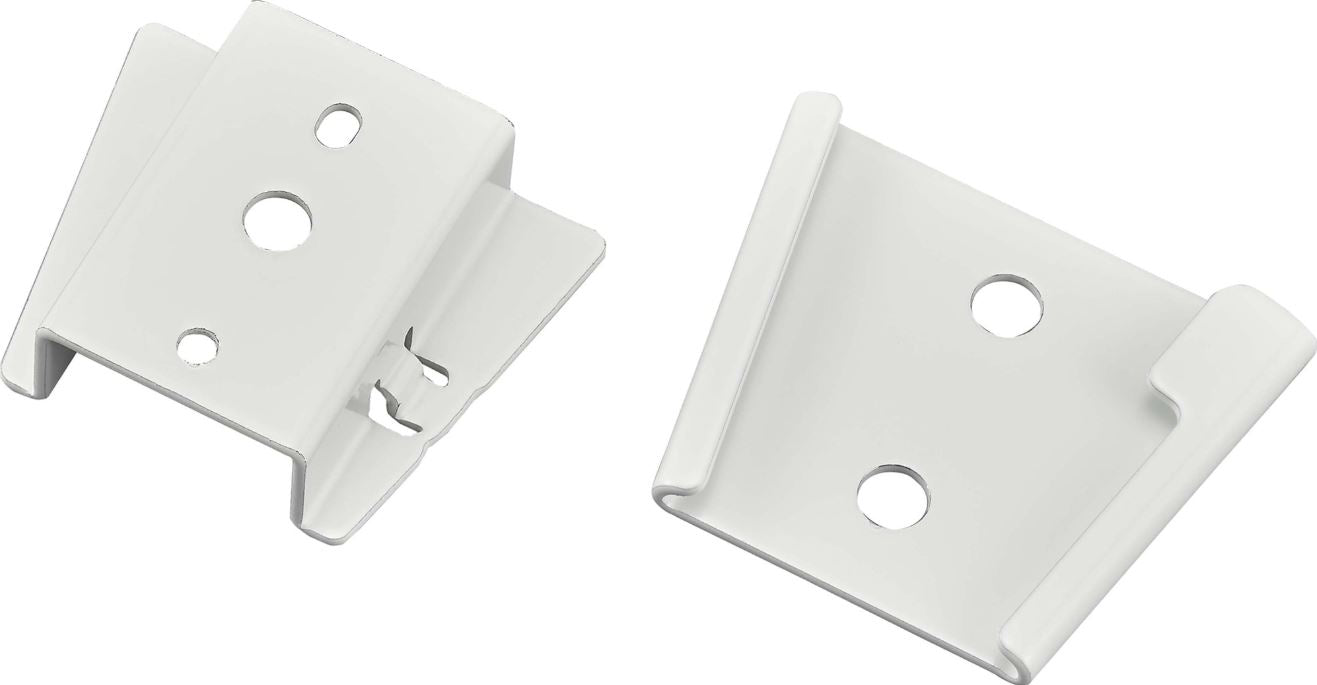

- Wall mount bracket supplied
- Includes a wall-mount bracket for easy installation
- Available in black or white
Note: When using an IEEE802.3at-compliant PoE power supply device, the maximum speaker output is 15 watts; when using an IEEE802.3af-compliant PoE power supply device, the maximum speaker output is 6 watts.
Technical Specifications
|
MANUFACTURER |
Yamaha |
|
Manufacture Part Number |
VXL1W-16 |
|
Product Type |
Wall Mount |
|
Speaker Type/Configuration |
Full-range, Bass reflex |
|
Colour |
WHITE |
|
Frequency Response/Range (-10dB) |
81 Hz – 20 kHz *1 108 Hz - 20kHz 1 (w/ port cover) |
|
Coverage Area |
Horizontal: 170° Vertical: 20°（ +10° – -10°） (NORMAL), 40°（+10° – -30°） (WIDE) |
|
Speaker Driver Size LF-HF |
1.5” (3.75 cm) Cone × 16 |
|
Power Rating NOISE |
80 W |
|
PGM |
160 W |
|
PEAK |
320 W |
|
Nominal Impedance |
12 Ohms |
|
SPL - Sensitivity (1W, 1m on axis) |
91 dB SPL (1 m/1 W) *1 *2 |
|
Peak (Calculated) |
116 dB SPL (1 m) *3 |
|
I/O Connectors |
Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²) |
|
Protection Circuit - Load Protection |
Full-range power limiting to protecting network and transducers |
|
Finish |
VXL1B-16: Black painting (approximate value: Munsell N3.0), VXL1W-16: White painting (approximate value: Munsell N9.0) |
|
IP-Rating |
Dust and water resis tant : IP35 |
|
PRODUCT SHIPPING INFO |
|
|
Dimensions - (W x H x D) |
Width – 2.12” Height – 44.09” Depth – 4.09” 2.12 x 33.3 x 4.1 in. (54 x 846 x 104 mm) - Speaker Only 2.1 x 33.3 x 4.4 in. (54 x 846 x 111.5 mm) - with Included Bracket |
|
Packaging |
Packaged 1 Unit/Piece |
|
Net Weight |
3.9 KGS / 8.6 lbs. (Speaker Only) |
|
Package Weight |
11.02 LBS. |
|
Required Ceiling Board Thickness |
|
|
Mounting Options |
Wall Mount, Brackets & Mounting Piece Included |
|
ASIN/UPC |
|
|
Manufacture Part Number |
VXL1W-16 |
|
Country of Manufacture |
Indonesia |
