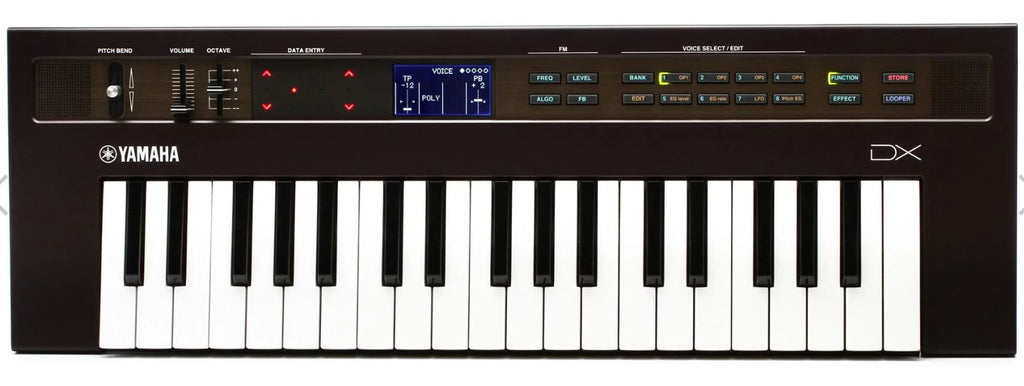

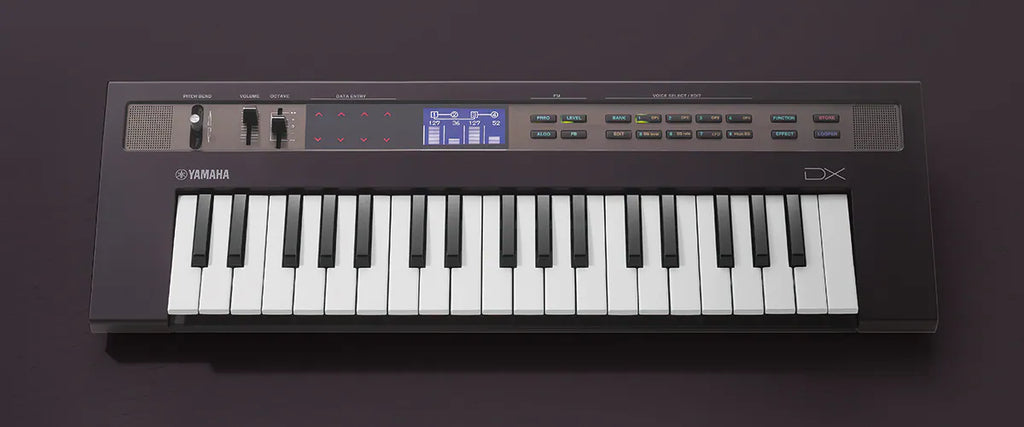

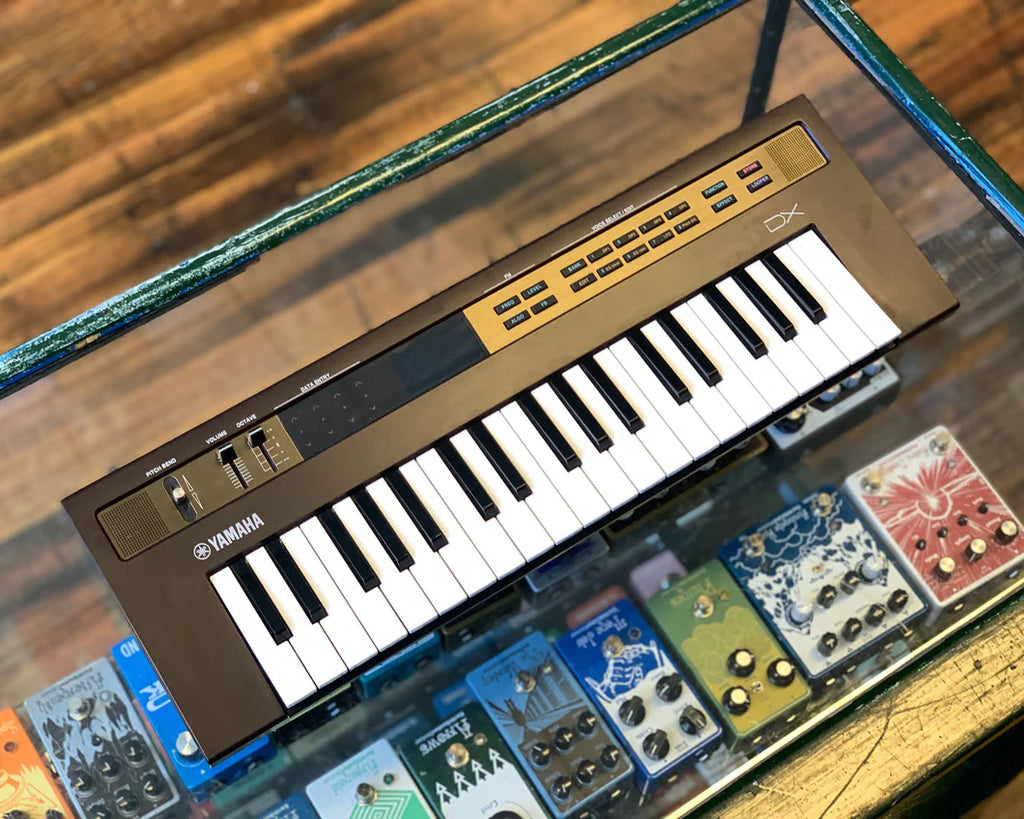

Yamaha REFACE DX FM Synthesizer
Description
37-key Mobile Mini Keyboard with 4-operator FM Sound Engine, Onboard Effects, Sustain Pedal Input, Built-in Stereo Speakers, MIDI Connectivity, Aux Input, and Dual Line Outputs
Get tips on Yamaha DX FM here: https://usa.yamaha.com/products/music_production/synthesizers/reface/reface_dx.html
The DX7 defined the synth sound in the '80s. The Yamaha Reface DX mobile mini keyboard puts the iconic sound of a 4-operator FM synth right in your hands, along with a host of modern features like onboard multi-effects and straightforward editing. Manipulating parameters is a breeze, thanks to the Reface DX's multi-touch control surface, and storing your patches is just as easy. Whether you want classic electric pianos and bells or modern dubstep and EDM sounds, the Reface DX has got you covered. On top of that, you get an onboard phrase looper for capturing song ideas or creating "sound on sound" overdubs.
Yamaha Reface DX FM synth: from nostalgia to trendsetter with modern control.
Key Features:

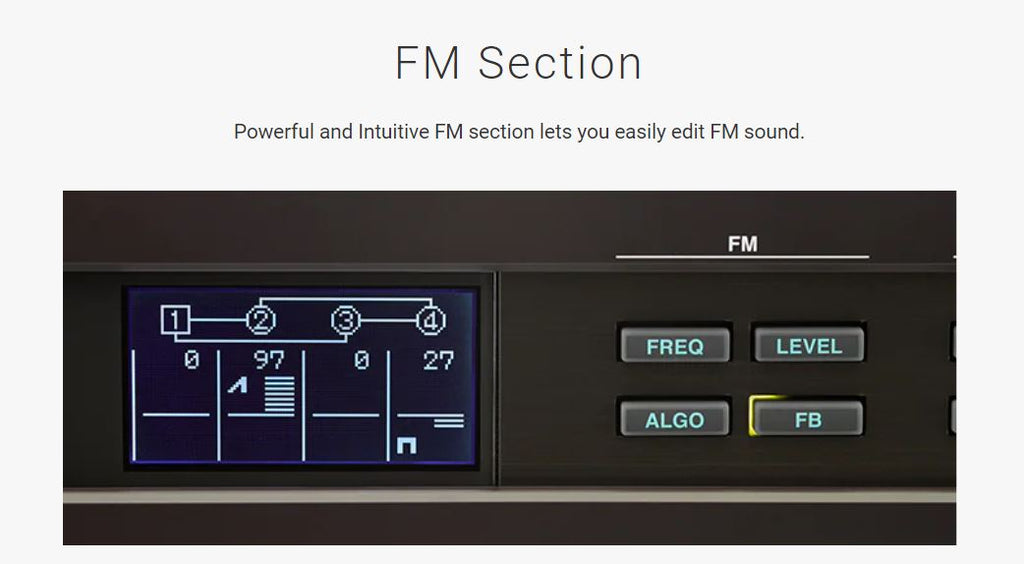

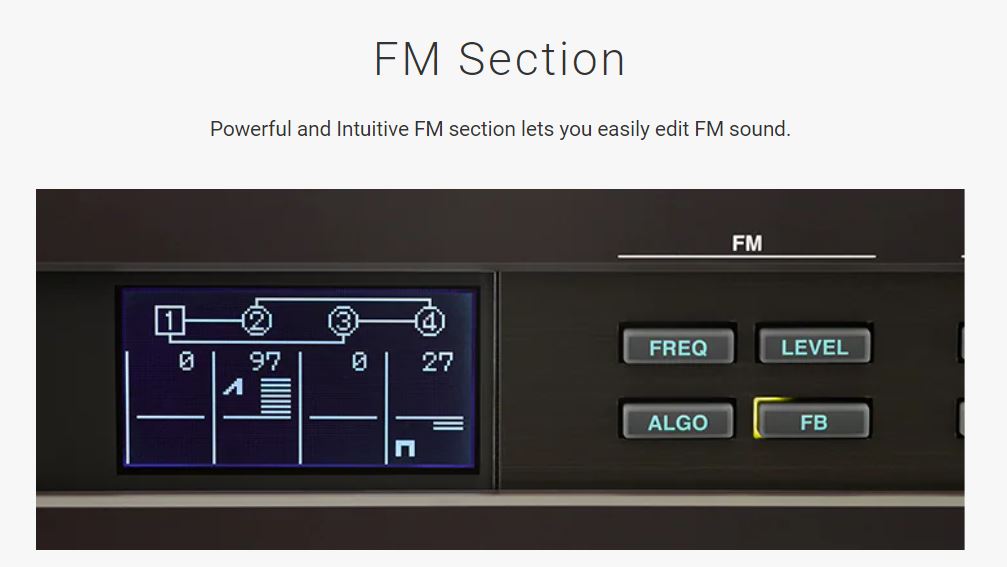

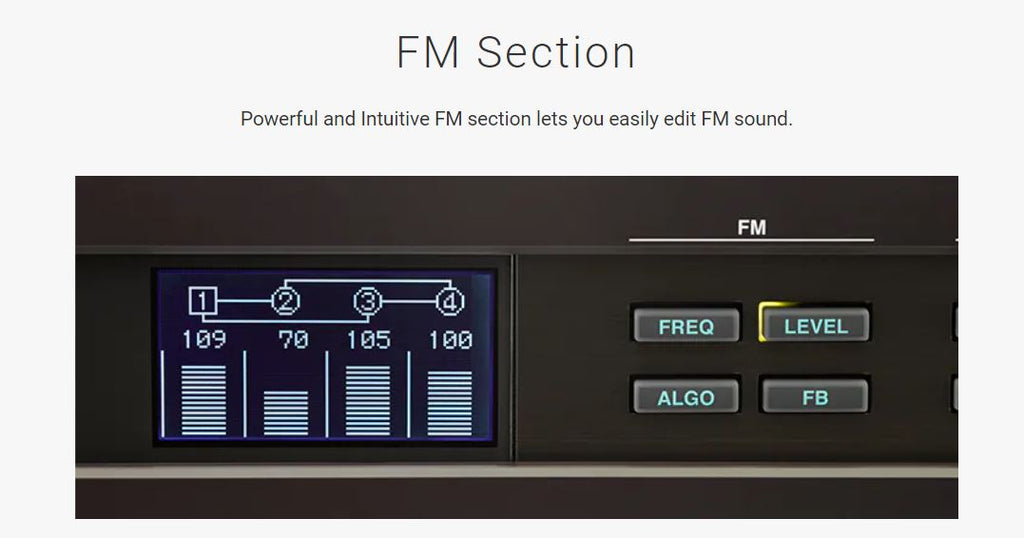

- 4-operator FM Sound Engine offers dynamic and expressive additive synthesis
- Onboard multi-effects for adding depth to your sound
- 32 memory locations let you store and recall your patches
- Phrase looper lets you capture song ideas or create "sound on sound" overdubs
- HQ mini keyboard allows fast, natural performance with premium feel and response
- Sustain pedal input allows the sustain function for all FM generated sounds

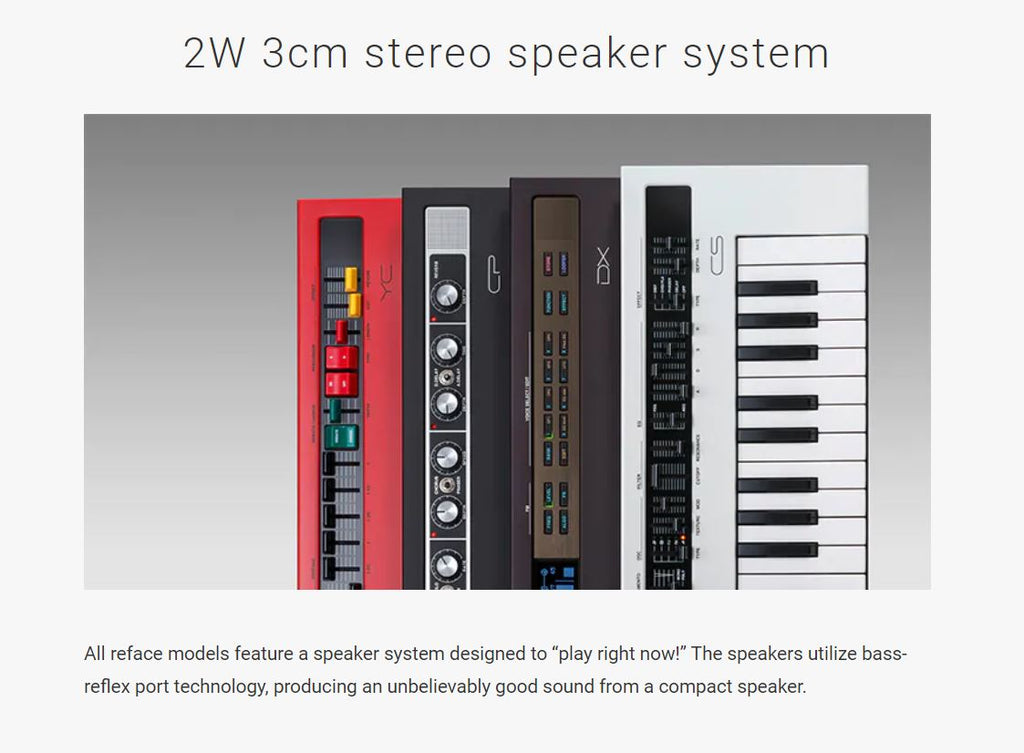

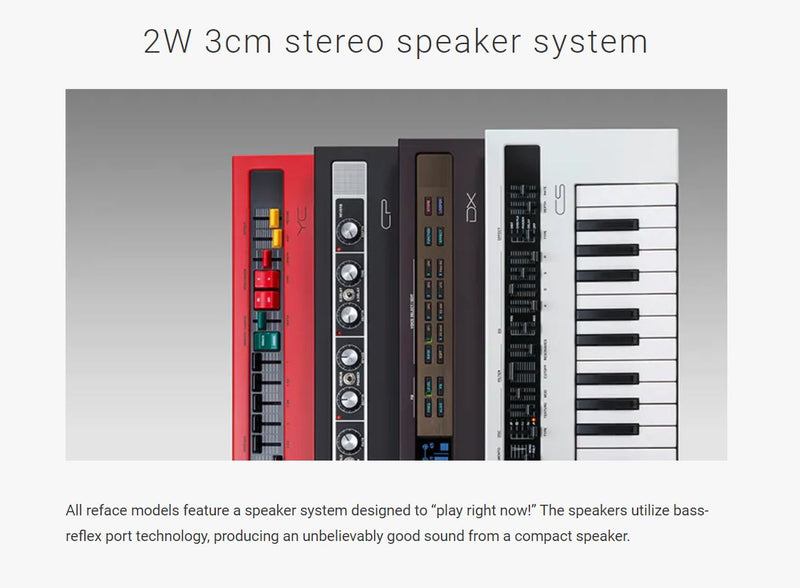

- Stereo speaker system lets you take your sounds anywhere
- Specially designed bass reflex port technology enhances bass response for full, rich sound

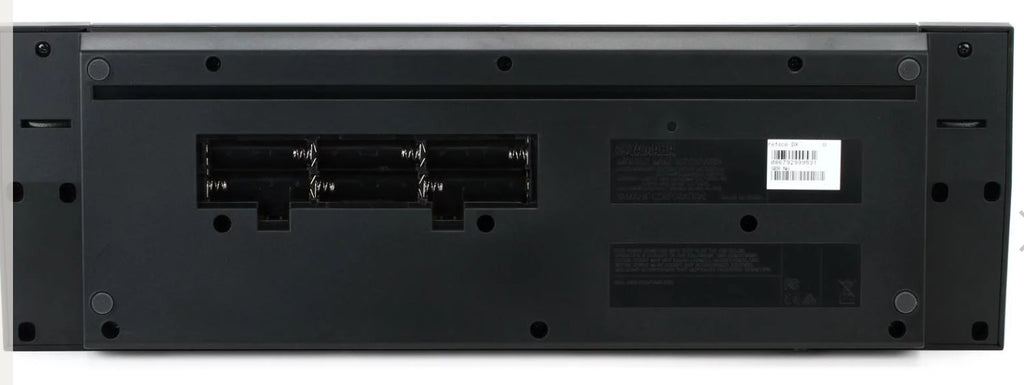

- Can operate on 6 AA batteries for up to 5 hours for true portability
- USB To Host port allows MIDI connectivity to your USB-equipped computer or iOS device
- An aux line input lets you play along with mobile devices, tablets, and more
- Dual line outputs provide connection to mixers, audio interfaces, DI boxes, and more.
Technical Specifications
| Manufacturer: | Yamaha |
| Manufacturer Model Number: | REFACE DX FM |
| Product Type: | Keyboard Synthesizer |
| Sound Engine: | FM tone generation |
| Analog/Digital: | Electric, Digital |
| Touch Sensitivity | Yes |
| Number of Keys: | 37 |
| Type of Keys: | Mini Synth Keys |
| Other Controllers |
Pitchbend |
| Polyphony: | 8 Notes |
| Presets: | 32 Voice Memories |
| Effects Types: | VCM Touch Wah, VCM Flanger, VCM Phaser, Chorus, Delay, Reverb, Distortion |
| Sampling | Phrase looper |

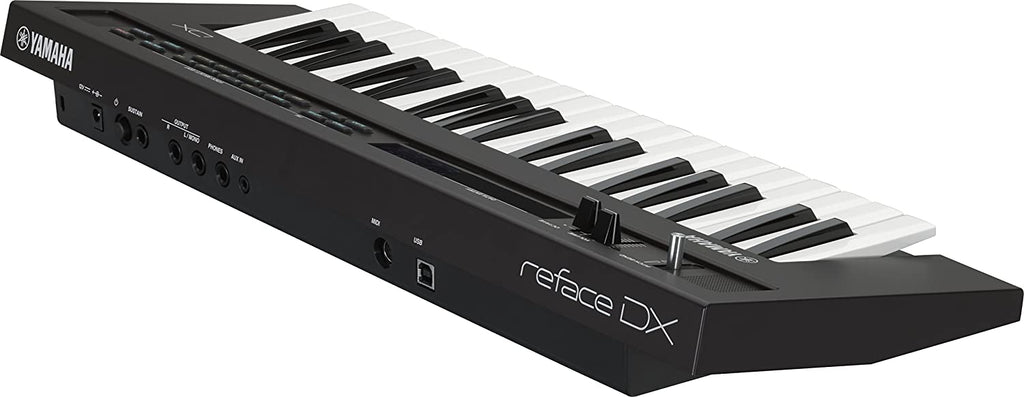

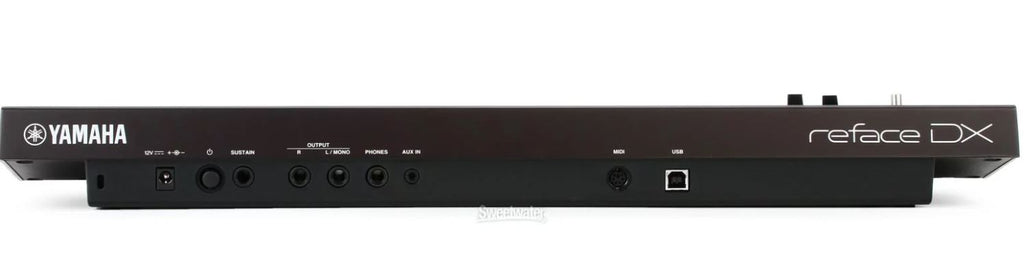

| Audio Inputs | 1 x 1/8" TRS (aux in) |
| Audio Outputs | 2 x 1/4" (left, right) |
| Headphones: | 1 x 1/4" |
| USB: | 1 USB Type B |
| MIDI I/O: | I1 x MIDI jack with breakout cable |
| Pedal Inputs: | 1 x 1/4" (sustain) |
| Built-in Speakers: | 2 x 1.18" |
| Amplifiers: |
2 x 2W |

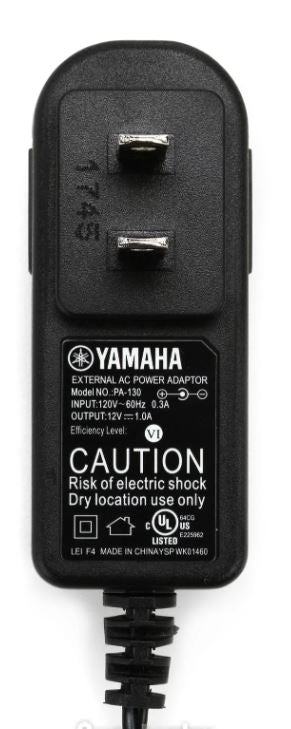

| Power Source: | 12V DC power supply or 6 x AA batteries (5 hour life span) |
| Height | 2.37" |
| Width: | 20.87" |
| Depth: | 6.87" |
| Weight: | 4.30 lbs. |
