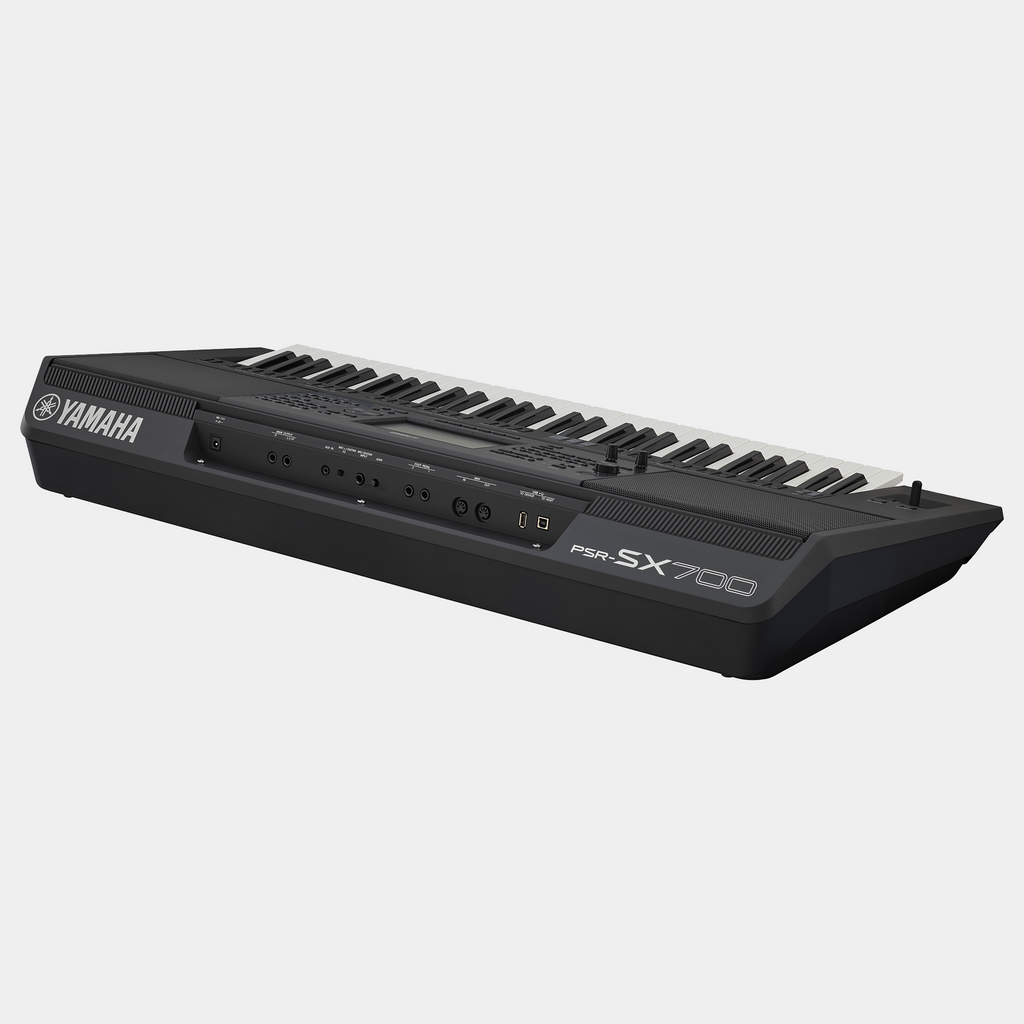

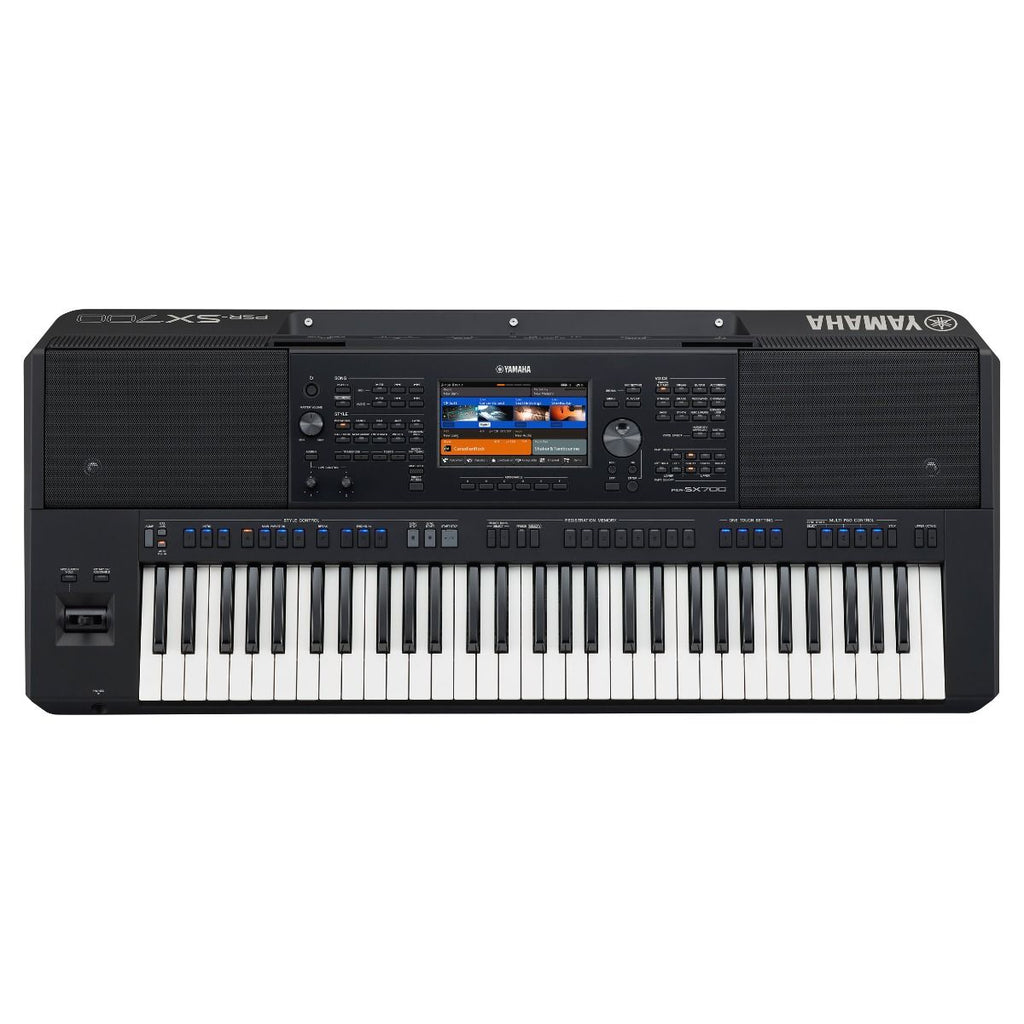

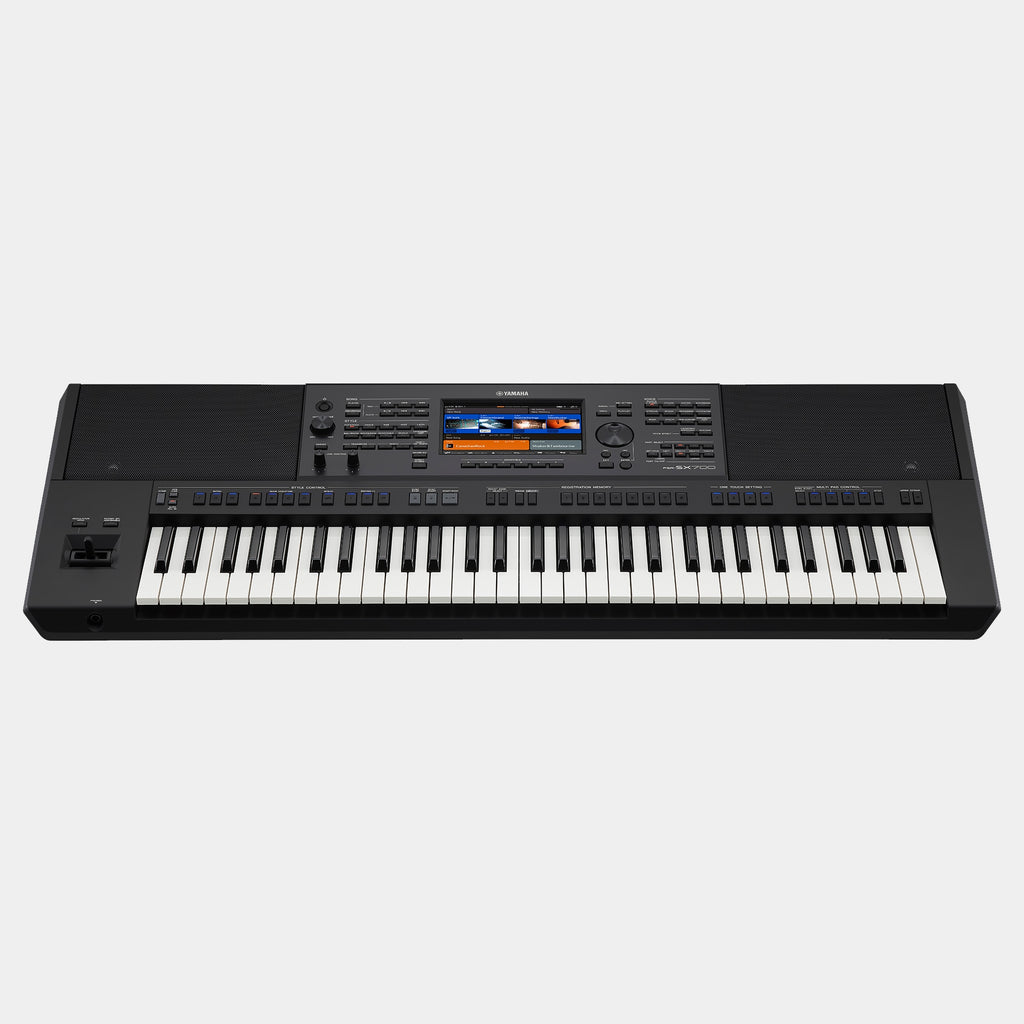

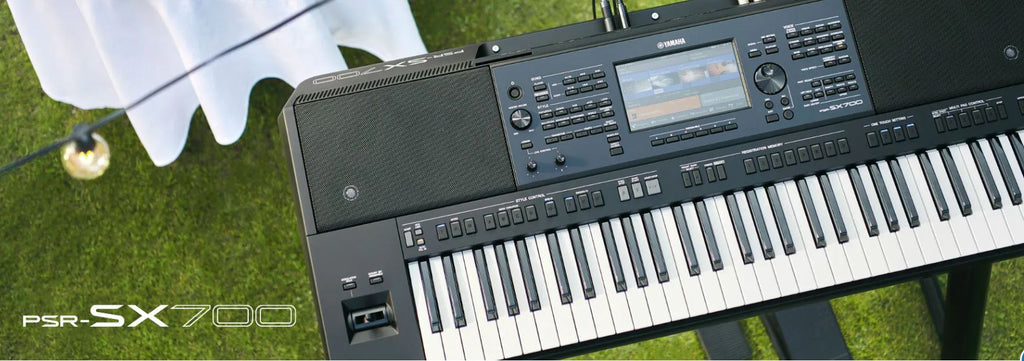

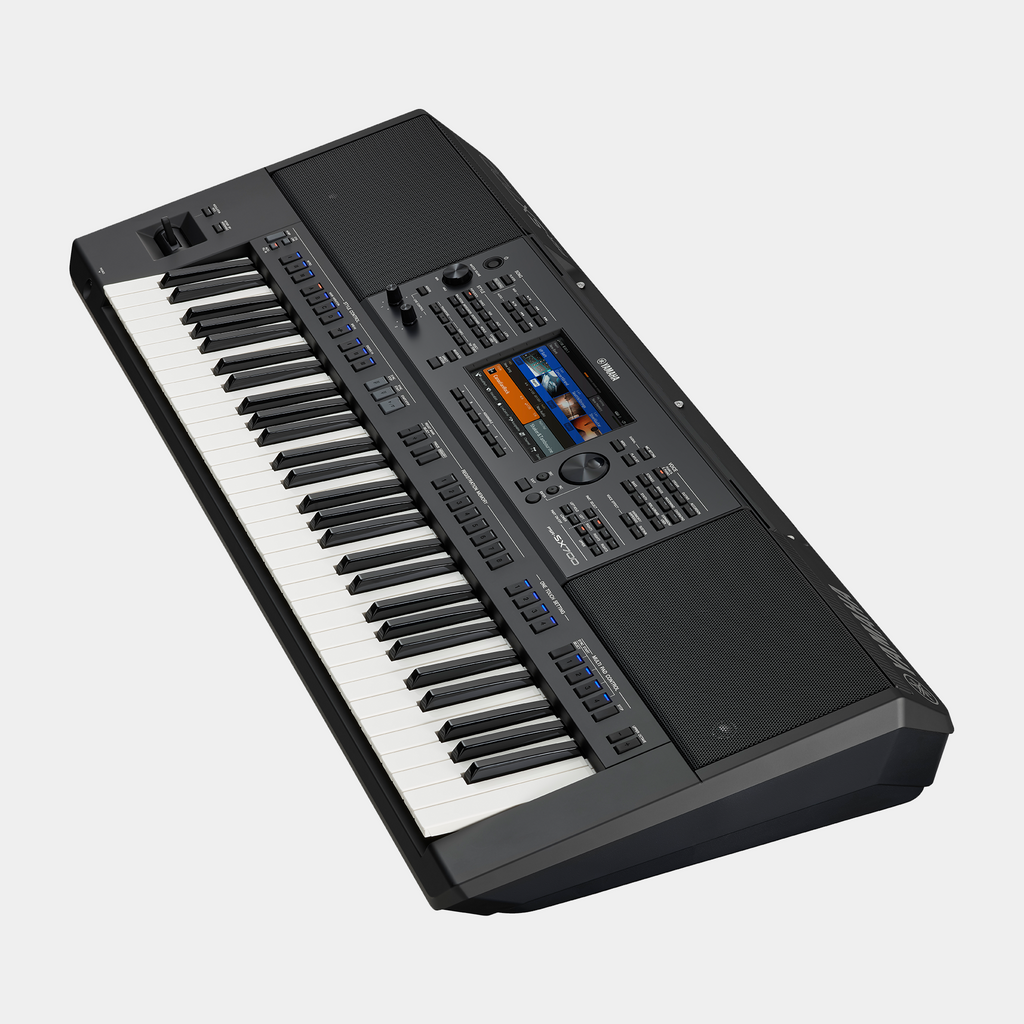

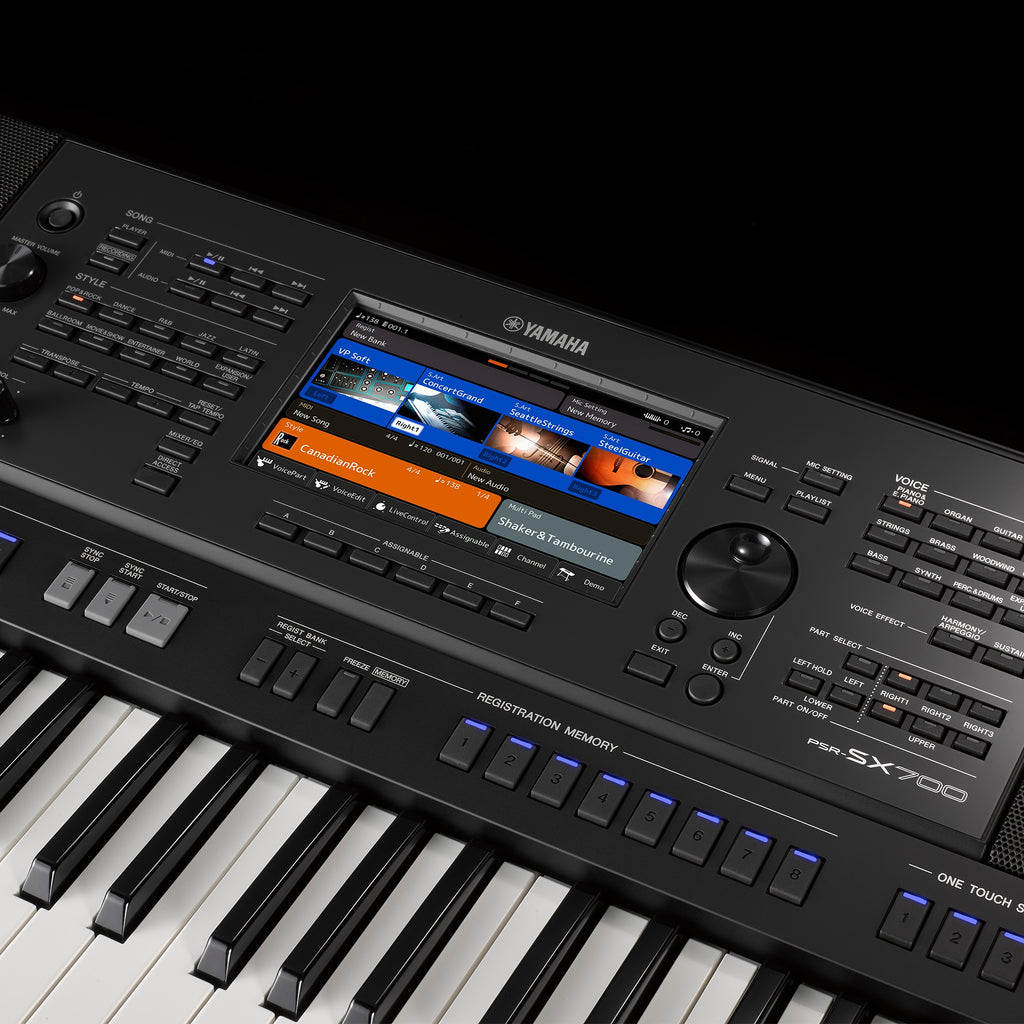

Yamaha PSR-SX700 ,61-Key ,l Arranger Keyboard

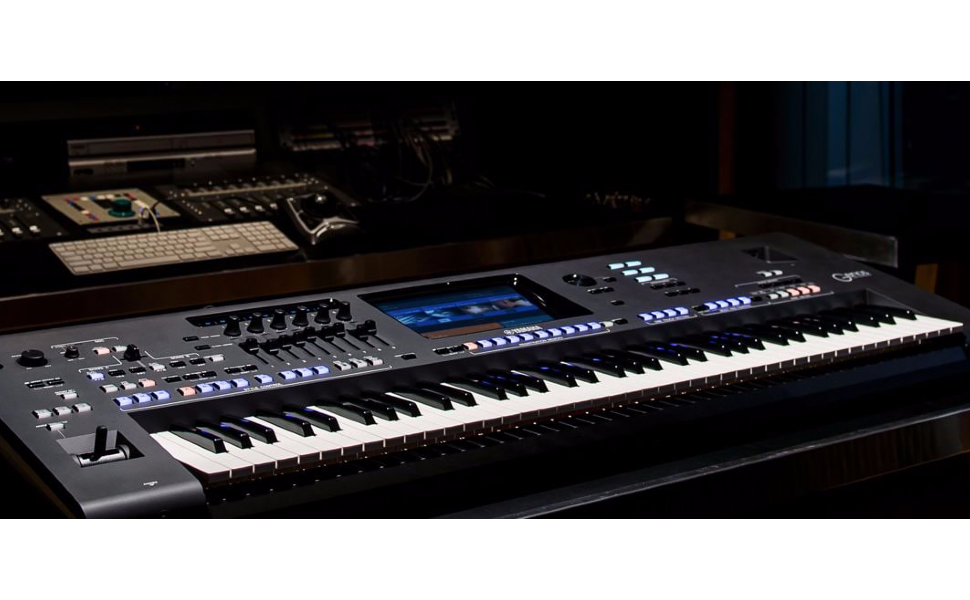

The PSR-SX700 mid-level Arranger Workstation benefits from technology and content advancements made from the development of the flagship Genos. This generation redefines the standard in sound, design and user experience for performance and composition instruments at this level.
The Next Level
Setting new standards in affordable pro Arranger Workstation sound, design and user experience. The PSR-SX700 has been meticulously crafted for enhanced musical performance, creation and ultimately, enjoyment.
The Essentials Have Never Been Better
With a re-imagined user interface, content designed for all styles of music, expandability, customizable functions and controllers, the PSR-SX700 provides all the tools you need to move a dance floor or create your next masterpiece.
Be Inspired As You Inspire
Great for performance or composition, the PSR-SX700 comes loaded with rhythmic patterns (called "Styles") that represent a variety of genres, giving you the foundations to bring your musical ideas to life. Combined with a wide variety of instrument Voices the flexibility of the PSR-SX700 makes it an invaluable creative muse.
Powerful Control Over Your Live Performance
• Joystick
• FSB Keyboard
• High Quality Output
• Style Section Reset
Inspired Sound
• Voices
• Styles
• Multi Pads
Complete Control Over Your Music
• Touch Screen/GUI
• Assignable Function
• Style Assembly
• Playlist and Registration
Let your music take you to new places
Voice & Style Expansion Packs enable you to customize the PSR-SX700 with a wide range of additional content from all over the world. When loaded into the keyboard, you can instantly access authentic new sounds, rhythms and backing in the musical style of your choice. Use Yamaha Expansion Manager to create individual expansion data sets containing content from various packs and utilize the 400MB memory on board. You can even create your own voices based on your sample library.
Yamaha PSR-SX700 Features
- 986 Voices, including 131 Super Articulation voices and 24 Organ flutes. 41 Drum/SFX kits
- 400 Styles, including 353 Pro Styles, 34 Session Styles, 10 DJ styles and 3 Free Play
- Pre-installed Expansion content
- 400MB on-board memory for expansion data
- 1GB internal memory
- MIDI song file capacity : 3MB per file
- Joystick, FSB keyboard for powerful live performance
- Intuitive and fast control with 7" color touch screen and Assignable function
- Mic/Guitar input for use when singing or collaborating with other performers
- Playlist and Registration for quick and easy set up
- Audio Recording (WAV/MP3)
- Voice and Style expandability with the Yamaha Expansion Manager
Technical Specifications
| Body | Color | Black |
|---|---|---|
| Dimensions | Width | 1017 mm (40") |
| Height | 139 mm (5.5") | |
| Depth | 431 mm (17") | |
| Weight | Weight | 11.5 kg (25.35 lb) |
| Keyboard | Number of Keys | 61 |
| Type | Organ (FSB), Initial Touch | |
| Touch Response | Normal, Soft 1, Soft 2, Hard 1, Hard 2 | |
| Other Controllers | Joystick | Yes |

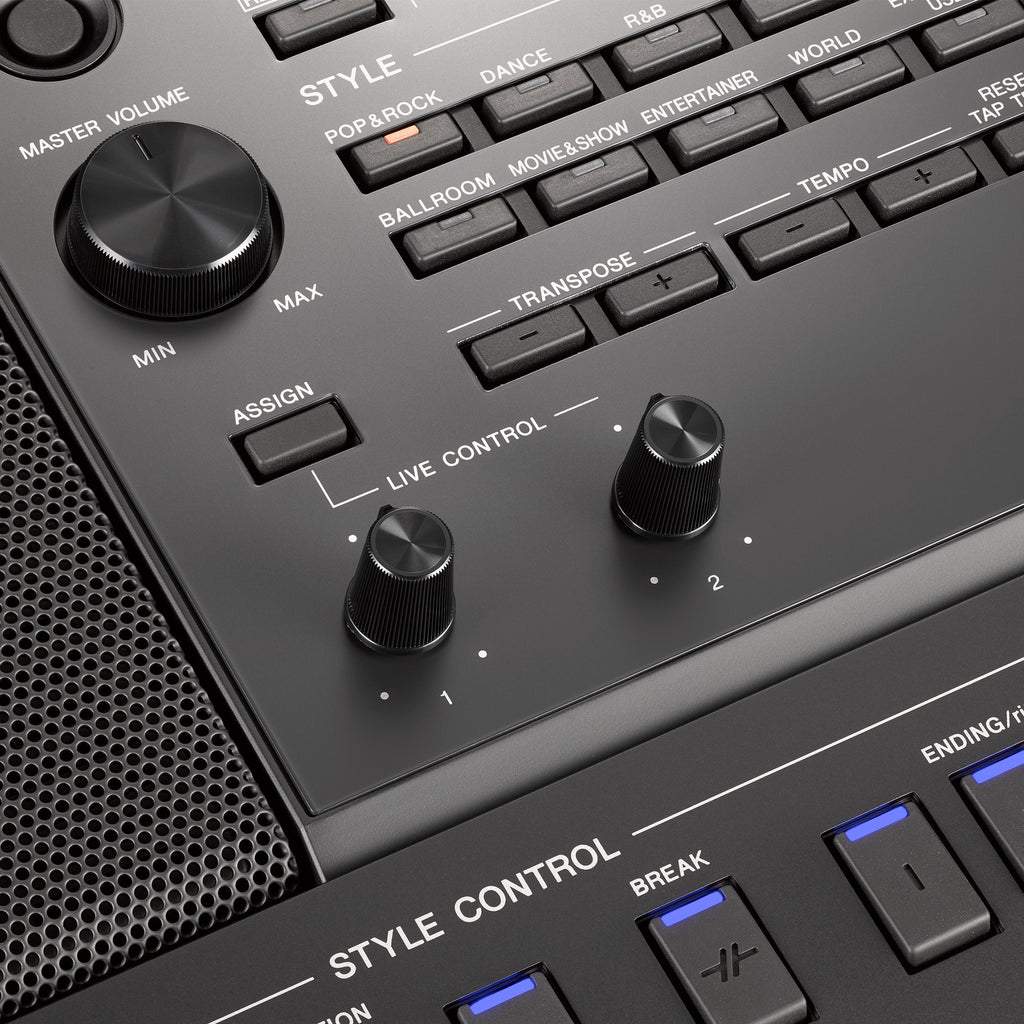

| Control Knobs | 2 (assignable) | |
| Pitch Bend | - | |
| Modulation | - | |
| Display | Type | TFT Color Wide VGA LCD |
| Size | 800 x 480 dots (7 inch) | |
| Touch Screen | Yes | |
| Color | Color | |
| Language | English, German, French, Spanish, Italian | |
| Panel | Language | English |
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 128 |
| Preset | Number of Voices | 986 Voices + 41 Drum/SFX Kits |
| Featured Voices | 131 S.Art!, 30 Mega Voice, 31 Sweet! Voices, 74 Cool! Voices, 89 Live! Voices, 24 Organ Flutes! | |
| Compatibility | XG | Yes (for Song playback) |
| GS | Yes (for Song playback) | |
| GM | Yes | |
| GM2 | Yes | |
| Expandability | Expansion Voice | Yes (approx. 400 MB) |
| Editing | Voice Set | |
| Part | Right 1, Right 2, Right 3, Left | |
| Types | Reverb | 59 Presets + 30 User |
| Chorus | 106 Presets + 30 User | |
| DSP | 322 Presets + 30 User | |
| Insertion Effect | 1-5: 322 Presets + 30 User | |
| Master Compressor | 5 Presets + 30 User | |
| Master EQ | 5 Presets + 30 User | |
| Part EQ | 28 Parts | |
| Others | Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1 | |
| Arpeggio | Yes | |
| Vocal Harmony | Number of Presets | - |
| Number of User Settings | - | |
| Preset | Number of Preset Styles | 400 |
| Featured Styles | 353 Pro Styles, 34 Session Styles, 10 DJ Styles, 3 Free Play | |
| Fingering | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard | |
| Style Control | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 | |
| Other Features | One Touch Setting (OTS) | 4 for each Style |
| Chord Looper | - | |
| Style Section Reset | Yes | |
| Unison & Accent | - | |
| Expandability | Expansion Style | Yes (Internal Memory) |
| Expansion Audio Style | - | |
| Compatibility | Style File Format, Style File Format GE | |
| Preset | Number of Preset Songs | 5 Sample Songs |
| Recording | Number of Songs | Unlimited (depends on the drive capacity) |
| Number of Tracks | 16 | |
| Data Capacity | Approx. 3 MB/Song | |
| Recording Function | Quick Recording, Multi Recording, Step Recording | |
| Compatible Data Format | Playback | SMF (Format 0 & 1), XF |
| Recording | SMF (Format 0) | |
| Preset | Number of Multi Pad Banks | 226 Banks x 4 Pads |
| Audio | Audio Link | Yes |
| Registration | Number of Buttons | 8 |
| Control | Registration Sequence, Freeze | |
| Playlist | Number of Records | 2500 (max.) Records per Playlist file |
| Lesson/Guide | Lesson/Guide | Follow Lights, Any Key, Karao-Key, Your Tempo |
| Search | Registration Bank | |
| Demo/Help | Demonstration | Yes |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 - 500, Tap Tempo | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440 – 466.8 Hz | |
| Octave Button | Yes | |
| Scale Type | 9 types | |
| Sub Scale Setting | - | |
| Bluetooth | - | |
| Miscellaneous | Direct Access | Yes |
| Text Display Function | Yes | |
| Wallpaper Customization | Yes | |
| Display Out | Yes (by using a commercially available USB display adaptor) * For a list of compatible devices, access the “Yamaha Downloads” website. | |
| Voices | Harmony/Echo | Yes (with Arpeggio) |
| Panel Sustain | Yes | |
| Mono/Poly | Yes | |
| Voice Information | Yes | |
| Styles | Style Creator | Yes |
| OTS Information | Yes | |
| Songs | Score Display Function | Yes |
| Lyrics Display Function | Yes | |
| Song Creator | Yes | |
| Multi Pads | Multi Pad Creator | Yes |
| Audio Recorder/Player | Recording Time (max.) | 80 minutes/Song |
| Recording | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo) | |
| Playback | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo) | |
| Lyrics Display Function | Yes (.mp3 only) | |
| Time Stretch | Yes | |
| Pitch Shift | Yes | |
| Vocal Cancel | Yes | |
| Storage | Internal Memory | Yes (approx. 1 GB) |
| External Drives | USB Flash Memory (via USB to DEVICE) | |

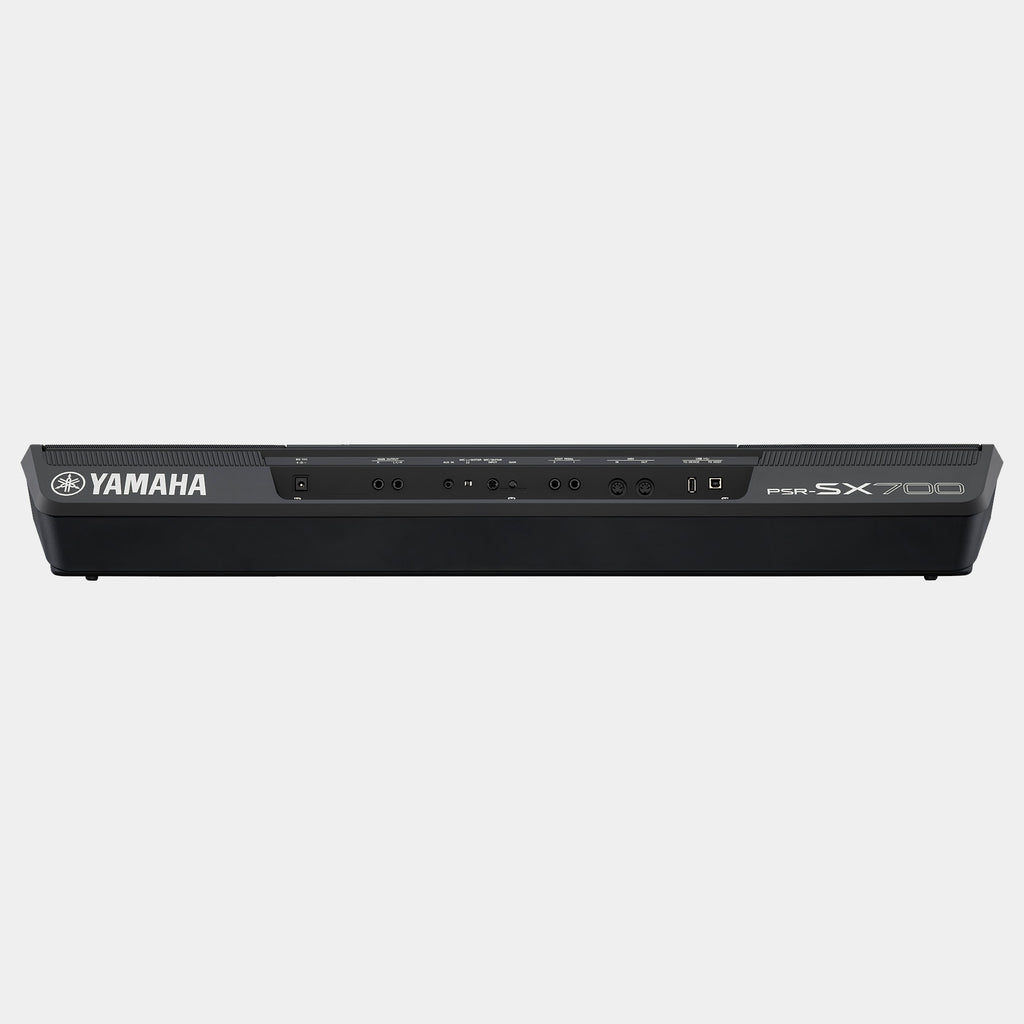

| Connectivity | Headphones | Yes |
| FOOT PEDAL | 1 (SUSTAIN), 2 (ARTICULATION), Function Assignable | |
| Microphone | Microphone/Guitar x 1 | |
| MIDI | IN, OUT | |
| AUX IN | Stereo mini jack | |
| LINE OUT | MAIN OUTPUT (L/L+R, R) | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| Amplifiers | 15 W x 2 | |
| Speakers | 13 cm x 2 + 5 cm x 2 | |
| Power Supply | PA-300C or an equivalent recommended by Yamaha | |
| Power Consumption | 21 W | |
| Auto Power Off Function | Yes | |
| Included Accessories | Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor(may not be include depending on your area. Check with your Yamaha dealer.) | |
