Description +-

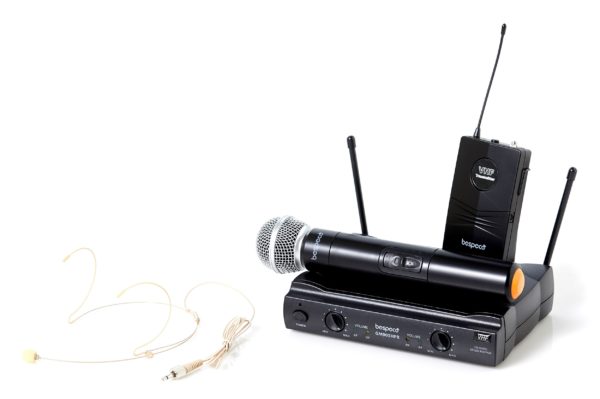

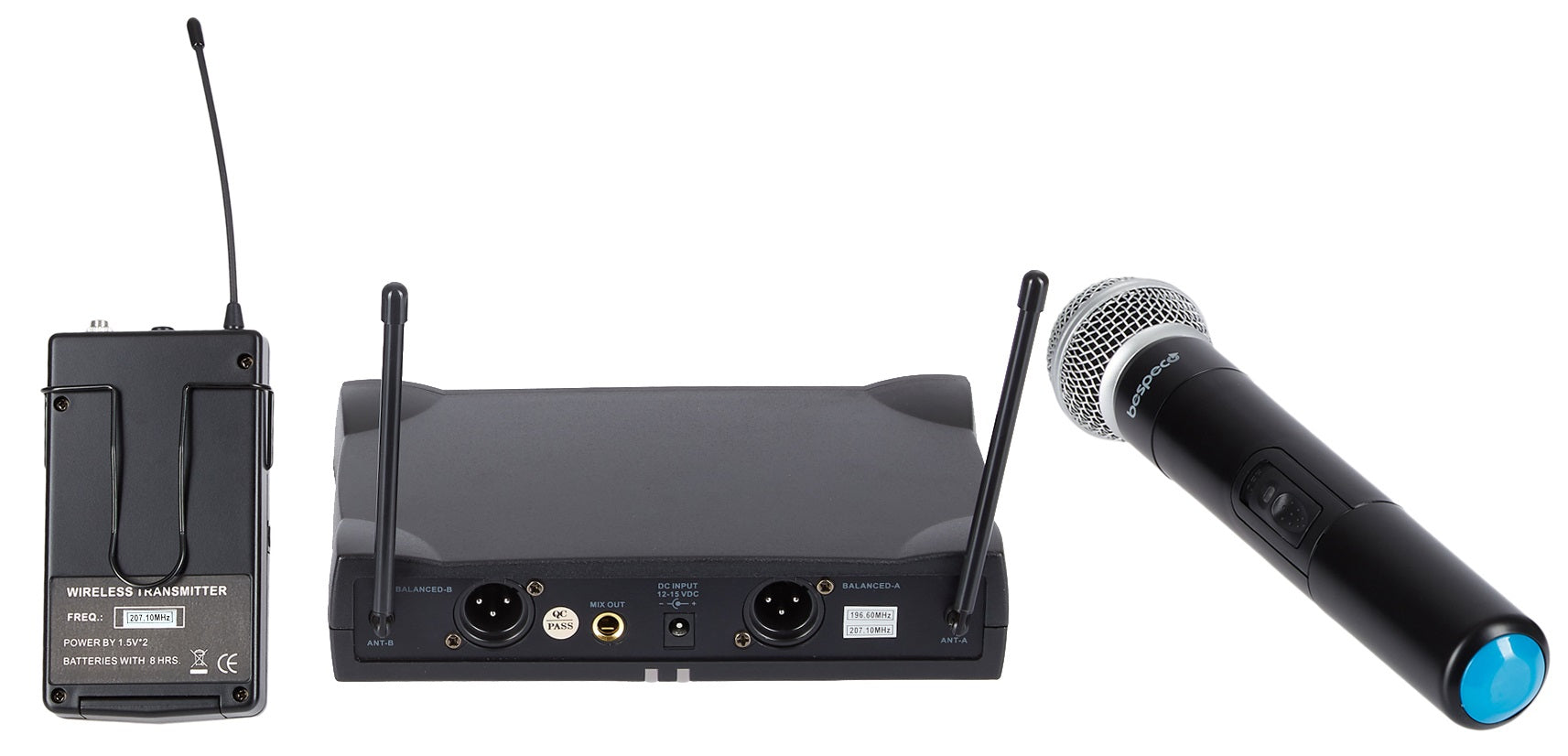

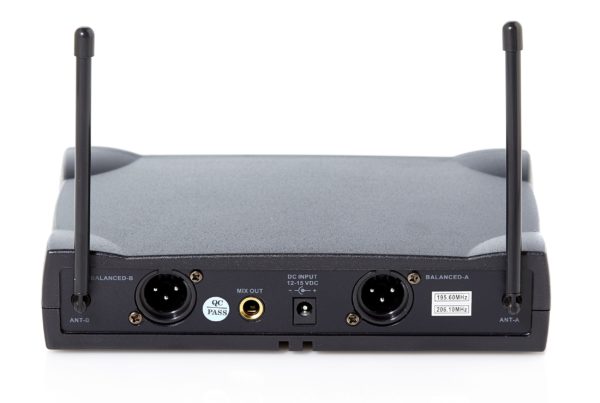

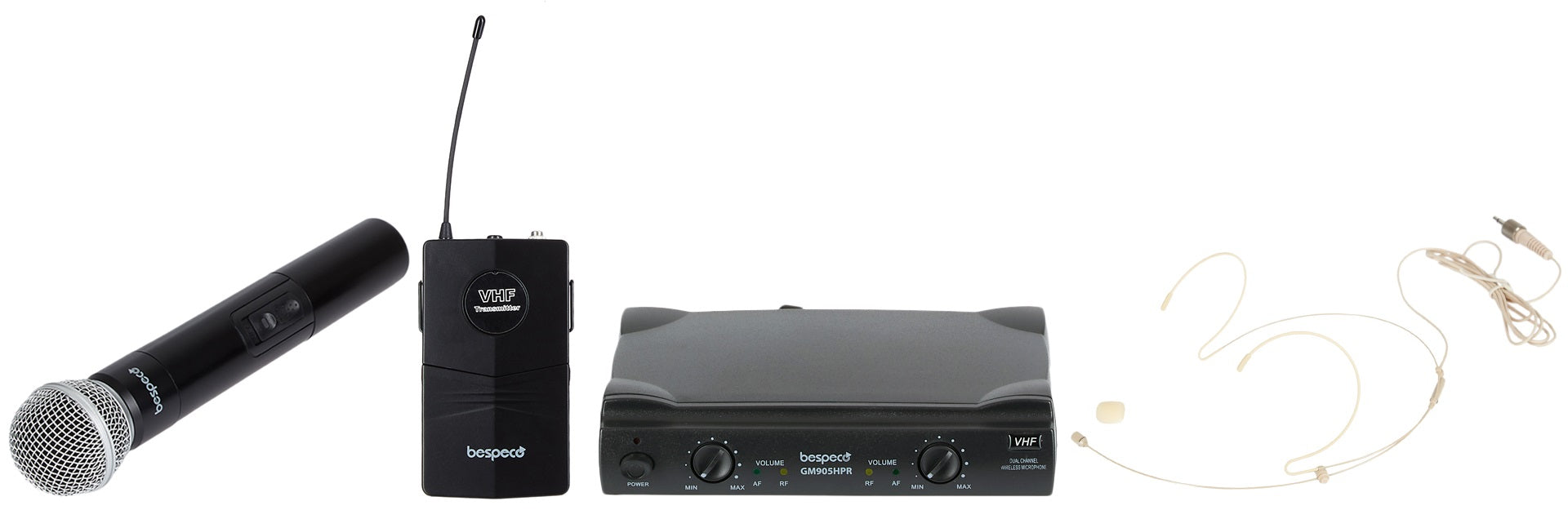

Bespeco GM905HPR microphone VHF wireless system includes a double handheld + headset. There is a frontal volume setting independent for each channel, two XLR outputs and one MIX Ø 6,3 mm jack output. Control LED for radio and audio frequency. External power supply included.
Specifications
- Brand:/Manufacturer: Bespeco
- Manufacture or Origin: Made in the Republic of China
- Product Type: VHF wireless system
- Categories: Wireless Microphone
- SKU: GM905HPR
- 65627212332
- 0656272123321
- System: Global Channer
- Carrier Frequency Range: 190 - 215 MHz
- Mode: Quarz controlled fixed frequency
- Channels: 1 + 1
-
Stability: +/- 0/5%
- Maximum Deviation: +/- 80KHz
- Frequency Response: 60 Hz - 15 KHz (+/- 1dB)
- S/N Ratio: plus of 90dB
- T.H/D: (Total Harmonic Distortion): 5% minor fi0
- Operating Distance: 50m or 164 ft. (under typical condition)
- Transmitter: Microphone
- Handheld: Moving coil dynamic

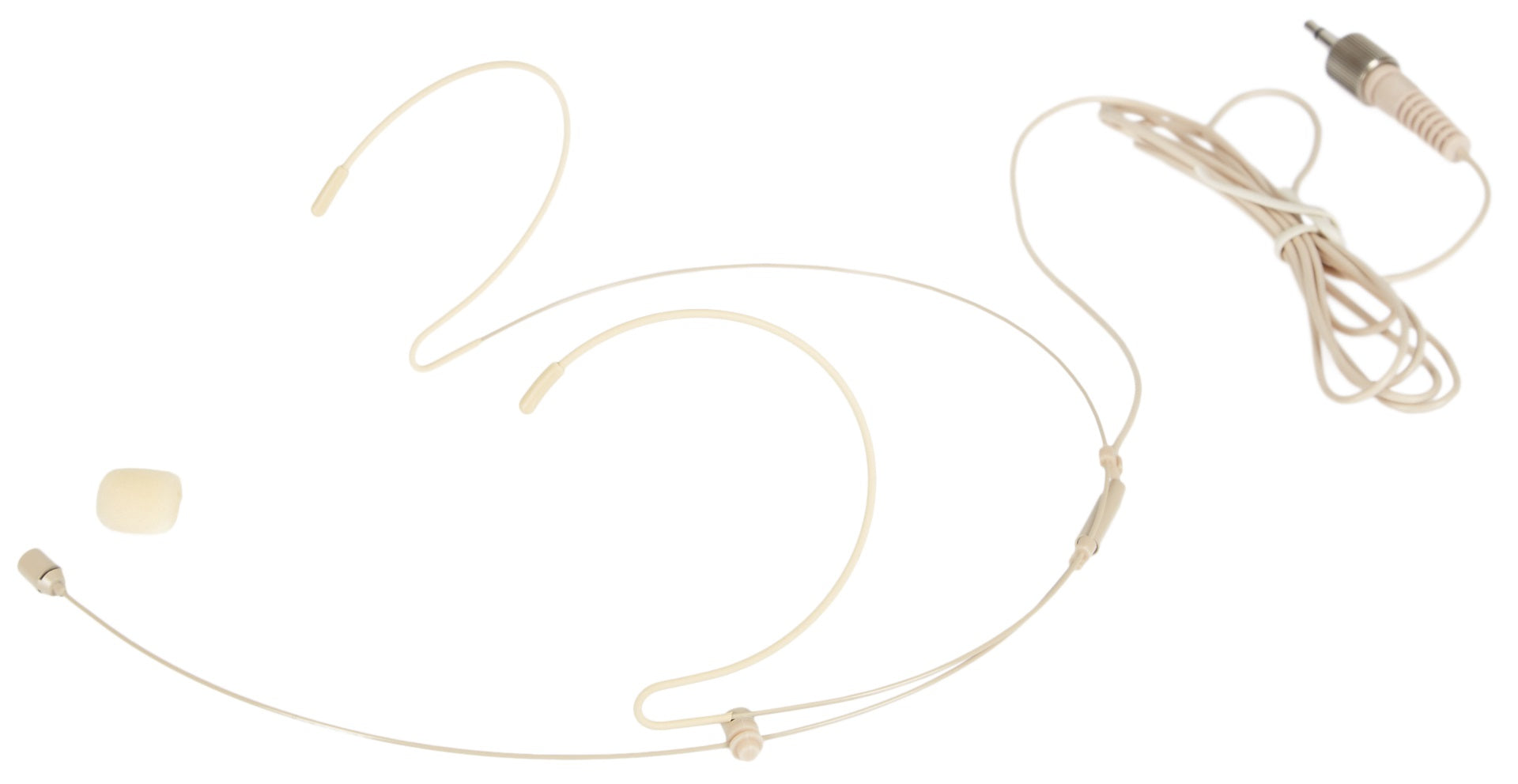

- Bodypack or headset: Electronic condenser
- Antenna: Built in

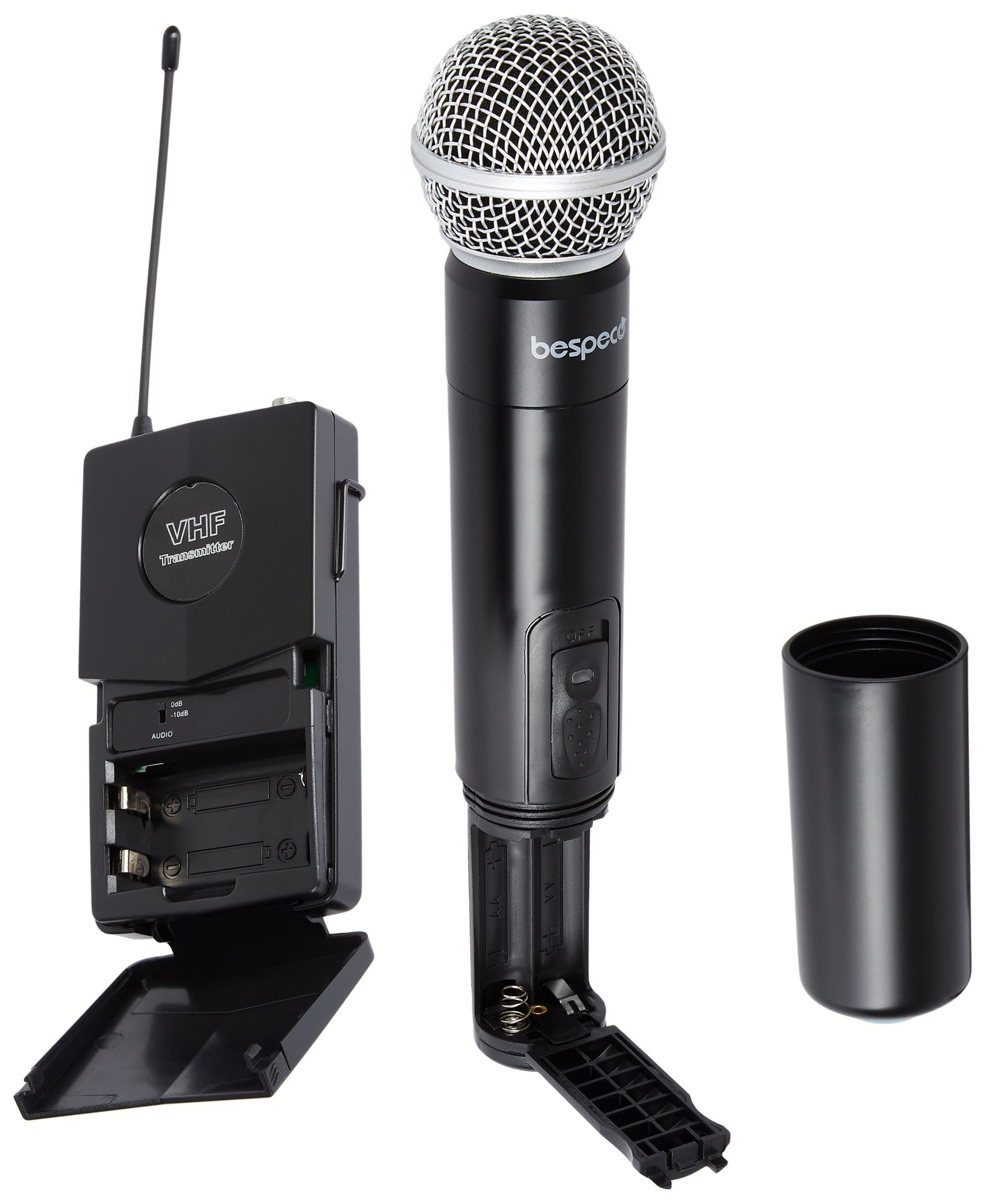

- Battery: 9V not included
- Dynamc range 90dB
Detailed Specifications
Quartz Crystal Oscillator
In wireless systems, a quartz-controlled oscillator ensures that transmitters and receivers work at exact frequencies, keeping them "in tune" with one another. Many radios, smartphones, and other wireless communication devices use quartz crystals to generate these fixed frequencies for modulation and demodulation of signals.
Advantages:
- High stability and precision: Quartz oscillators are known for being extremely accurate and resistant to environmental changes like temperature shifts.
- Low drift: Over time, the frequency remains almost constant, which is essential for reliable wireless communication.
